Description

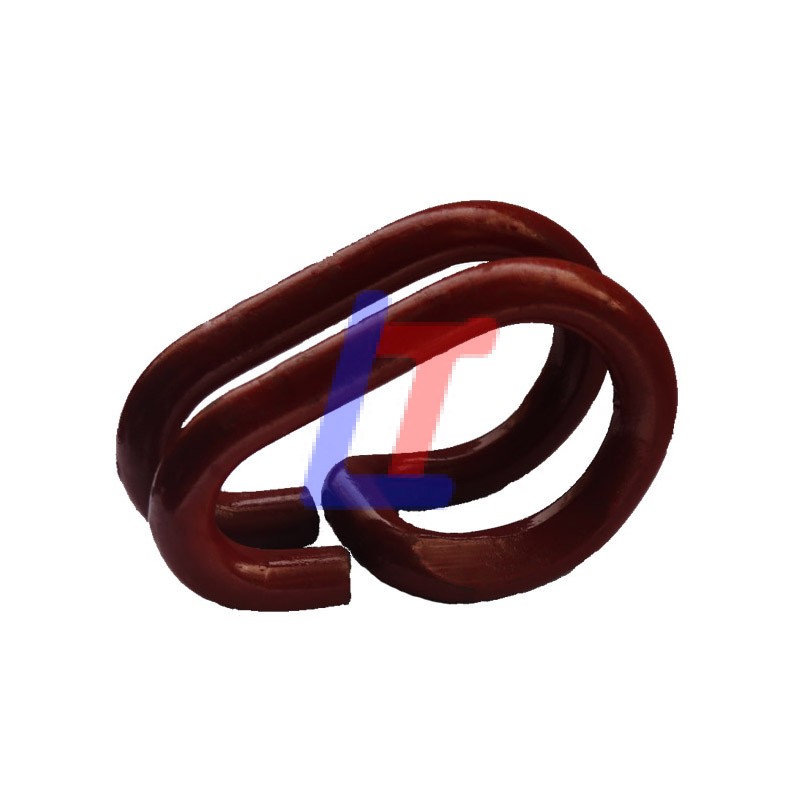

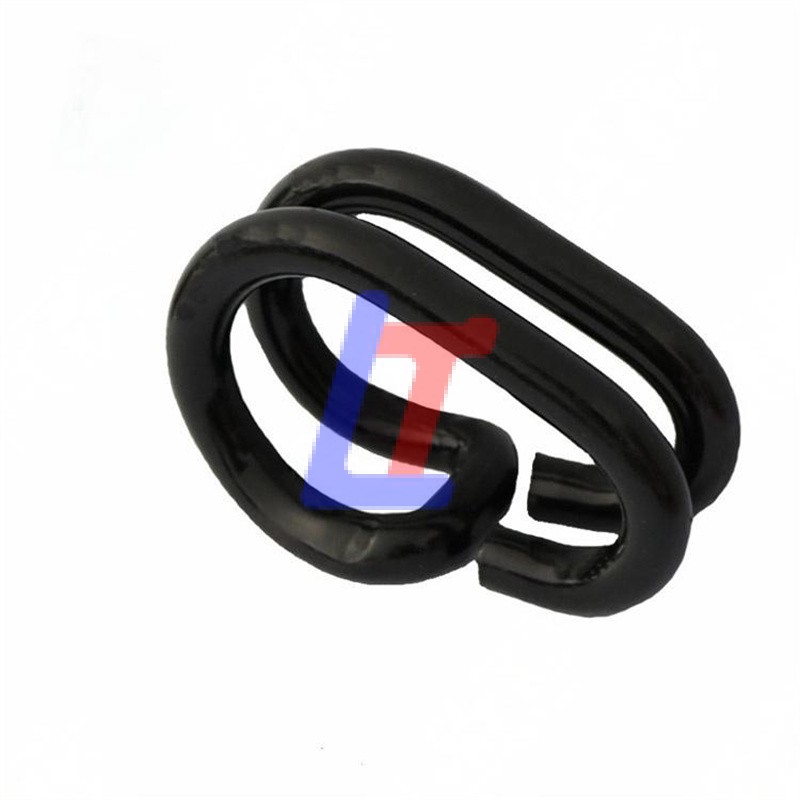

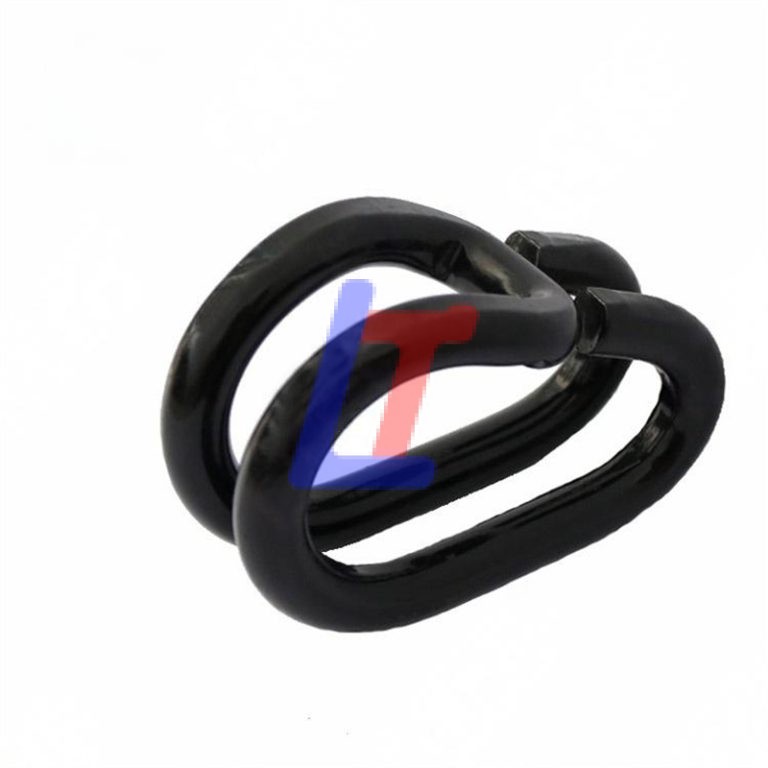

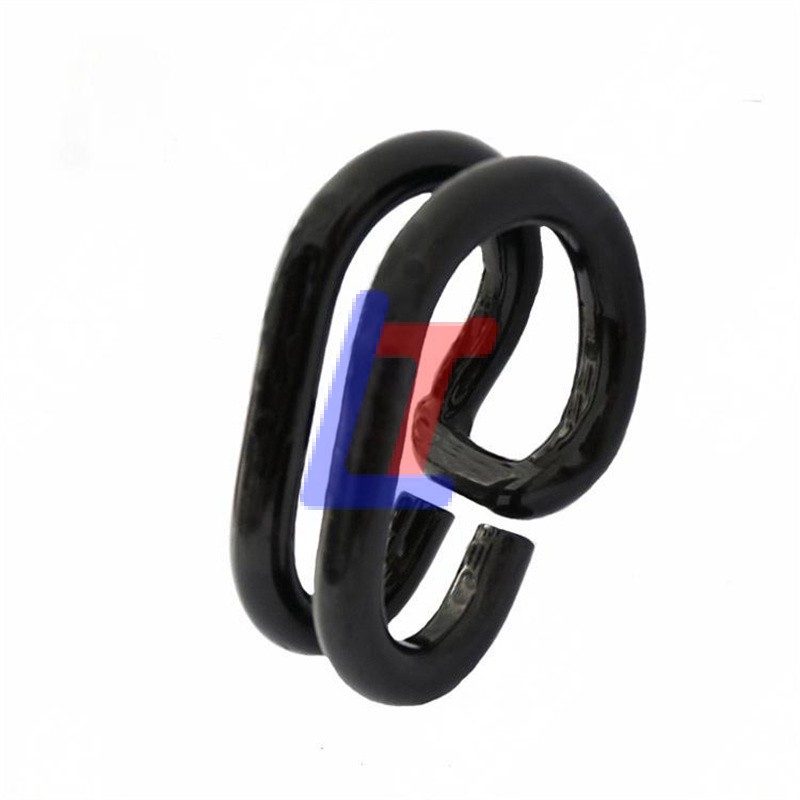

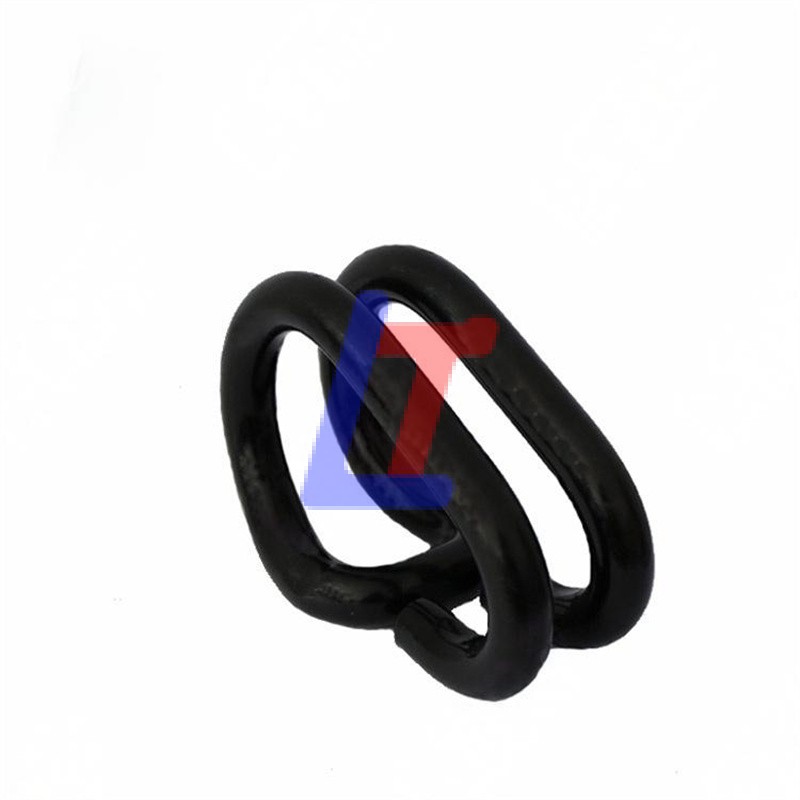

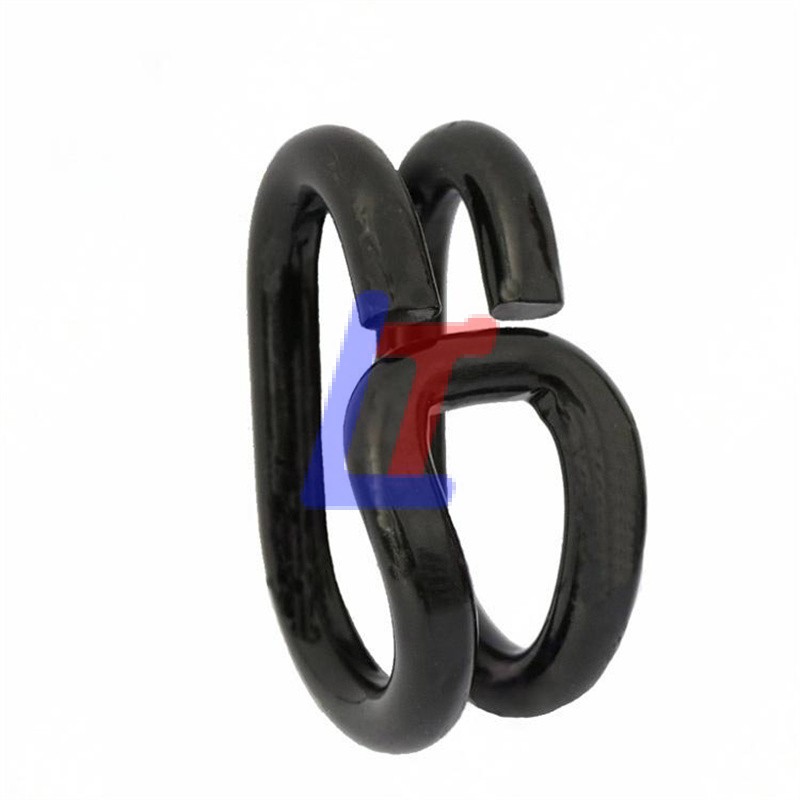

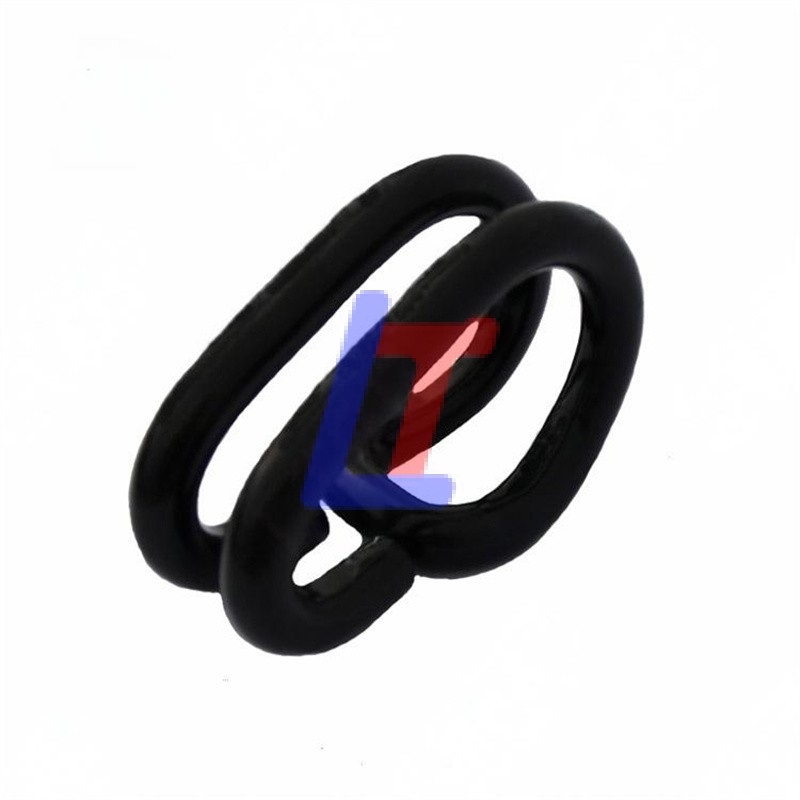

Deenic Rail Clip is an elastic fastener used in railway track systems. It is mainly used to fix rails and sleepers, provide stable clamping force and anti-lateral displacement ability, and is suitable for high-speed railways, heavy-load railways, subways and urban rail transit.
Function
- Fix rails: Provide continuous elastic clamping force to prevent rails from jumping up and down or lateral displacement under train load.
- Absorb vibration: Buffer the impact of trains through elastic deformation and reduce track structure wear.
- Adapt to temperature changes: Maintain stable clamping force in the environment of thermal expansion and contraction to prevent rails from creeping.
- Reducing noise: Elastic fasteners can reduce wheel-rail contact vibration and reduce train running noise.
Installation steps
- Pre-install rail pads: Ensure that there is an insulating buffer layer between the rail bottom and the sleeper.
- Place rails: Adjust the gauge and level to the design value.
- Installing spring clips: Use special tools to press Deenic Rail Clip into the embedded parts and check whether the clamping force meets the standard.
- Acceptance test: Measure the gauge, clamping force and insulation performance.
Deenic Rail Clip is an efficient and durable railway elastic fastener that provides stable rail fixing force through the elastic deformation of spring steel
Technical Specifications
|
Name |
Deenic Rail Clip |
|
Colour |
Red, Black, Yellow According to customer’s drawing |
|
Standard Reference |
BS970, DIN17221, GB/T1222, GB/T4357, GB/T4358,etc. |
|
Surface Treatment |
Oil Black, Static Coating, Dacromet, HDG, Upon customer requirement |
|
Material |
60Si2Mn,60Si2Cr,38Si7 |
|
Test Item |
1.Salt Spray Test(120h) 2.Fatigue Test≥5000000times; 3.Hardness:42-48; 4.Decarburization Layer≤0.2mm; 5.Clamping Force 6.Residual Deformation/KN＜1.00mm |
Advantages
How to Find a Qualified Rail Fastener Manufacturer?
Please choose LTRF.
Why Choose LTRF?
- Strong Technical Expertise
LTRF boasts a dedicated R&D center. Moreover, it maintains long-term collaborations with major industry players such as China Railway, CRCC, and the Academy of Railway Sciences. In addition, it also partners with leading railway universities. As a result, LTRF has been able to develop various innovative fastening systems for both domestic and international markets. Notably, all these systems possess independent intellectual property rights. Indeed, to date, LTRF holds over 30 invention and utility model patents.
- Professional Manufacturing
LTRF always aims for the best. We carefully choose the materials we use and make sure every part is made with great care and skill. And we believe in doing things perfectly, so we keep coming up with new ideas and check the quality of our products very carefully to make sure they’re good.
We work fast to make sure you get your order on time. And we offer good service before and after you buy something. At LTRF, we also focus on what our customers need. We’re committed to making good products and providing great service in everything we do.
LTRF control the cost of each process, and the finance department updates the cost calculation regularly.
Furthermore, LTRF’s advanced testing equipment endows the company with comprehensive quality inspection capabilities for the entire fastener system. This meticulous quality-control measure is crucial for ensuring product reliability. Importantly, LTRF holds ISO and CRCC certification for railway products. These certifications not only demonstrate the company’s compliance with international and industry-specific standards but also enhance its credibility in the market.
