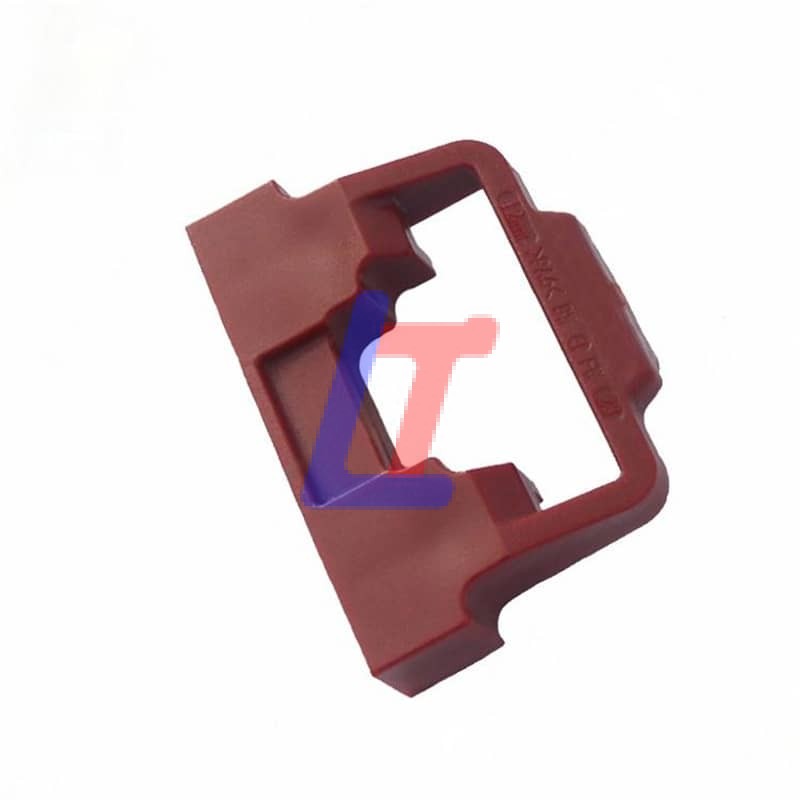

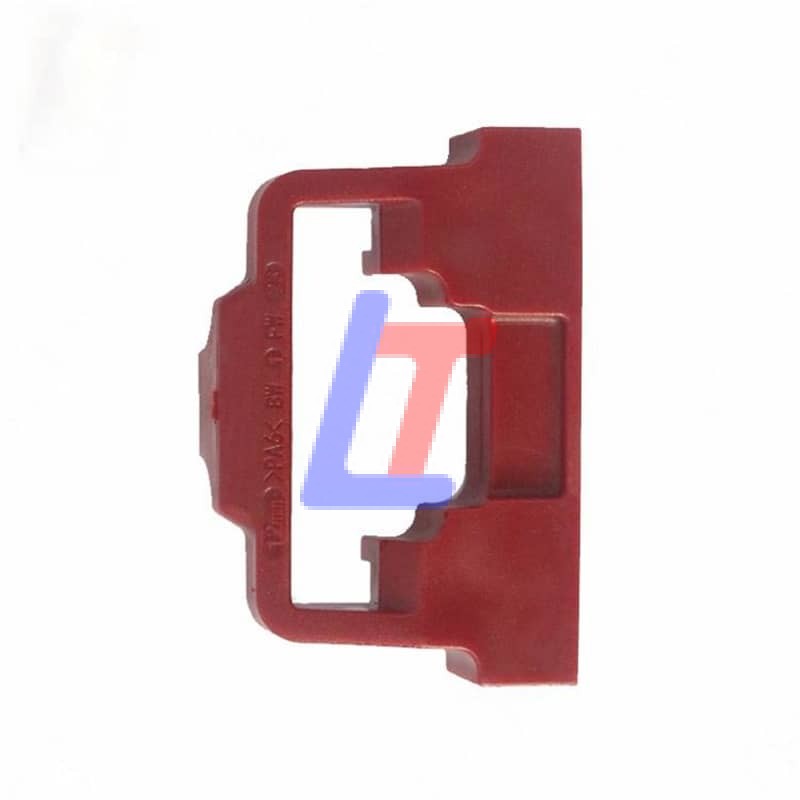

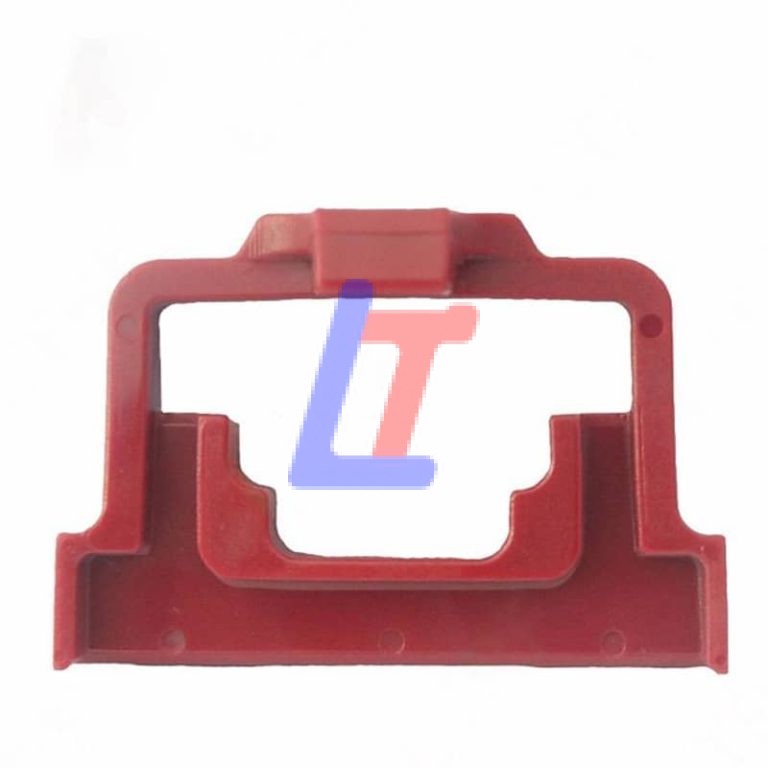

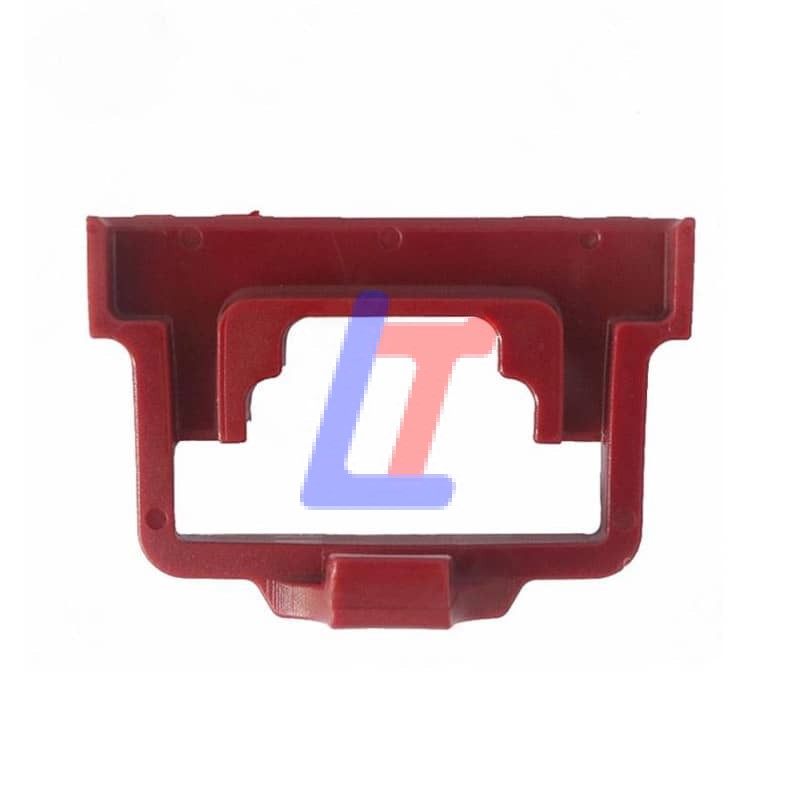

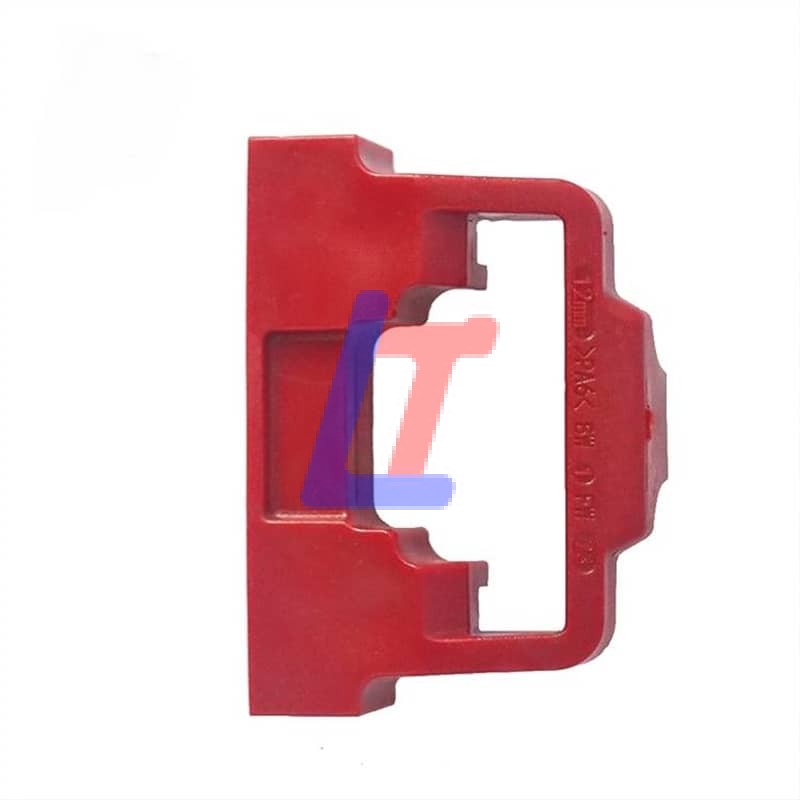

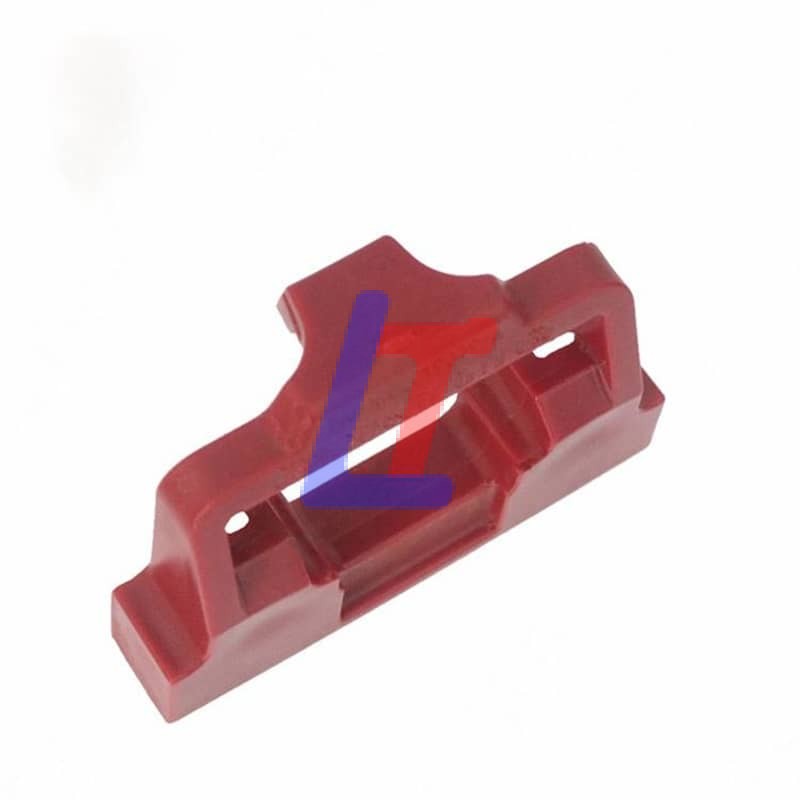

Descriptionof Gauge Plate
Gauge Plate is a key component in the rail fastening system. It is usually installed between the rails and the sleepers to fix the position of the rails and maintain the gauge (the distance between the inner sides of the two rails). It is mostly made of nylon or composite materials with high wear resistance and compressive strength.
Function of Gauge Plate
- Maintaining the stability of the gauge: The gauge plate ensures the correct position of the rail in the lateral direction (left and right direction) through its specific thickness and shape, preventing the gauge from expanding or shrinking due to train load or temperature changes.
- Transmitting lateral forces: When a train passes, lateral forces (such as centrifugal force and wheel-rail interaction force) are generated. The gauge plate can disperse these forces to the sleepers and the roadbed to reduce the lateral displacement of the rails.
- Adjusting the gauge: By replacing gauge plates of different thicknesses, the gauge can be fine-tuned (for example, when the gauge needs to be appropriately widened in a curved section).
- Cooperating with elastic fasteners: In modern rail fastening systems, gauge plates are often used in conjunction with elastic fasteners (such as spring bars, bolts, etc.), which not only ensure the tightness of the rails, but also allow a certain elastic deformation to buffer vibration.
- Insulation function: On electrified railways or sections with track circuits, some gauge baffles are made of insulating materials (such as nylon or composite materials) to prevent current leakage and ensure the normal operation of the signal system.
The gauge Plate is an indispensable component in the railway fastening system, which is directly related to the gauge accuracy, driving safety and track durability. Its design and selection need to be optimized according to the line conditions (such as speed, axle weight, curve radius, etc.).
TechnicalSpecifications
|
Name |
Gauge Plate |
|
Material |
PA6+30%GF,PA66+30%GF |
|
Standard Reference |
UIC60,UIC54,Wfp14k-12 |
|
Application |
60kg (UIC) rail, 52kg rail, 136RE Rail, 90R, 75R, 50R, 60R etc |
|
General color |
Red, Black |
|
Packing |
Normal export packing, European standard pallet or as per customer’s requirements |
|
Technical Parameter |
Range |
Unit |
Actual |
|
Density |
1.3-1.45 |
g/cm |
1.45 |
|
Tensile Strength |
≥170 |
Mpa |
178 |
|
Elongation |
≤4.4 |
% |
4.0 |
|
Bending Strength |
≥250 |
Mpa |
290 |
|
Impact Strength |
≥80 |
KJ/㎡ |
85 |
|
Melting Point |
250-270 |
℃ |
270 |
|
Insulation Resistance |
≥1×108 |
Ω |
5×108 |
|
Hardness |
≥110 |
HRR |
118 |
Advantages
How to Find a Qualified Rail Fastener Manufacturer?
Please choose LTRF.
Why Choose LTRF?
- Strong Technical Expertise
LTRF boasts a dedicated R&D center. Moreover, it maintains long-term collaborations with major industry players such as China Railway, CRCC, and the Academy of Railway Sciences. In addition, it also partners with leading railway universities. As a result, LTRF has been able to develop various innovative fastening systems for both domestic and international markets. Notably, all these systems possess independent intellectual property rights. Indeed, to date, LTRF holds over 30 invention and utility model patents.
- Professional Manufacturing
LTRF always aims for the best. We carefully choose the materials we use and make sure every part is made with great care and skill. And we believe in doing things perfectly, so we keep coming up with new ideas and check the quality of our products very carefully to make sure they’re good.
We work fast to make sure you get your order on time. And we offer good service before and after you buy something. At LTRF, we also focus on what our customers need. We’re committed to making good products and providing great service in everything we do.
- Competitive Pricing + Superior Quality
LTRF control the cost of each process, and the finance department updates the cost calculation regularly.
Furthermore, LTRF’s advanced testing equipment endows the company with comprehensive quality inspection capabilities for the entire fastener system. This meticulous quality-control measure is crucial for ensuring product reliability. Importantly, LTRF holds ISO and CRCC certification for railway products. These certifications not only demonstrate the company’s compliance with international and industry-specific standards but also enhance its credibility in the market.
