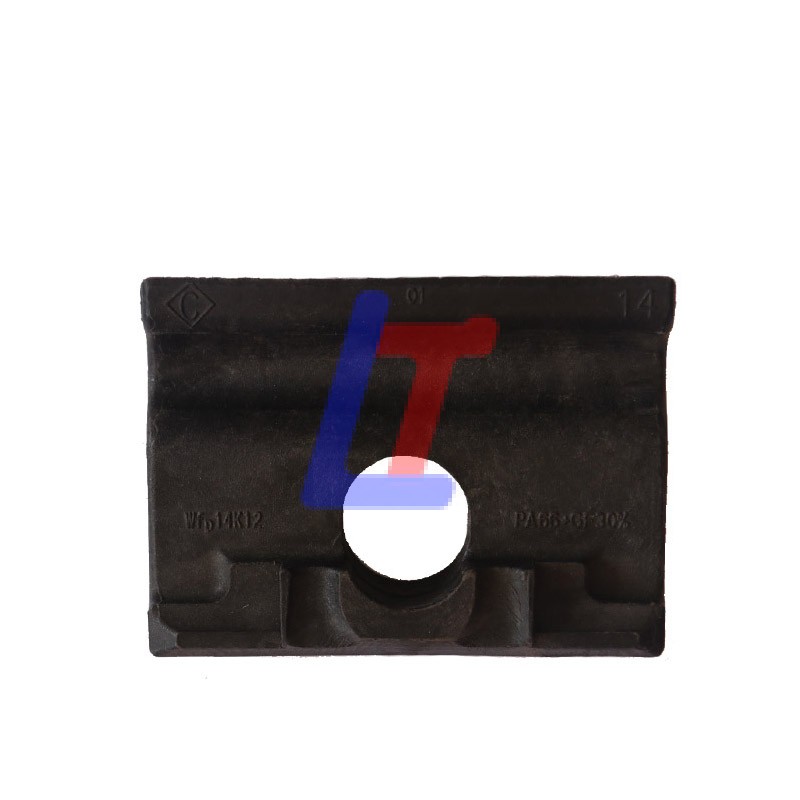

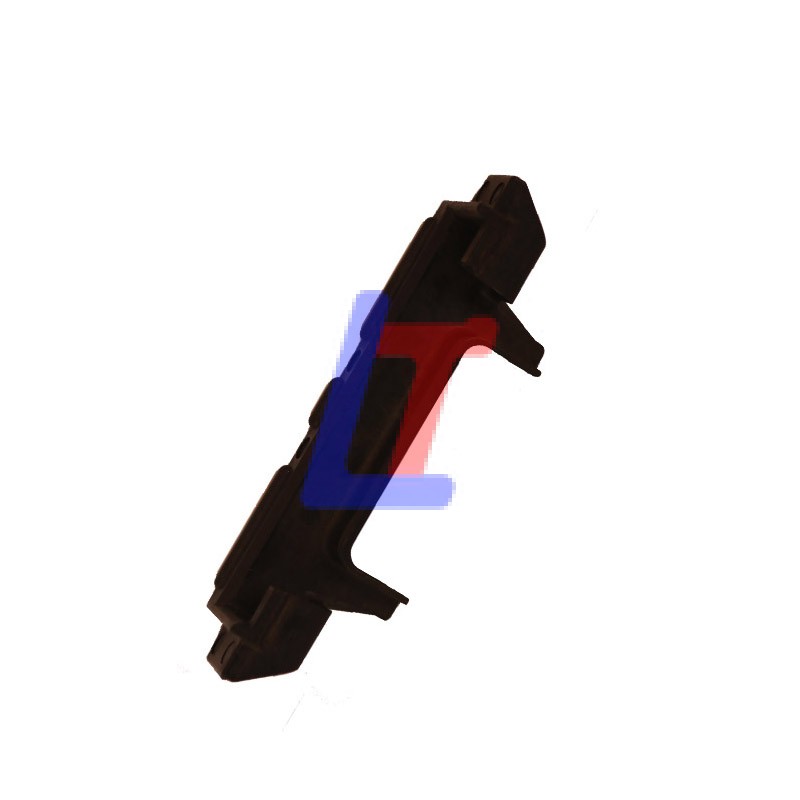

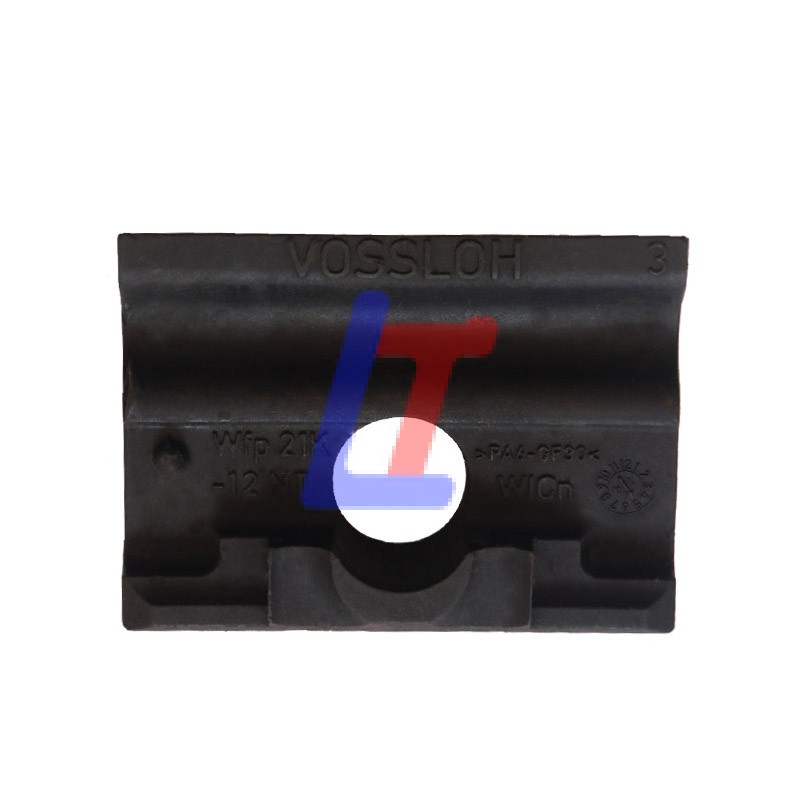

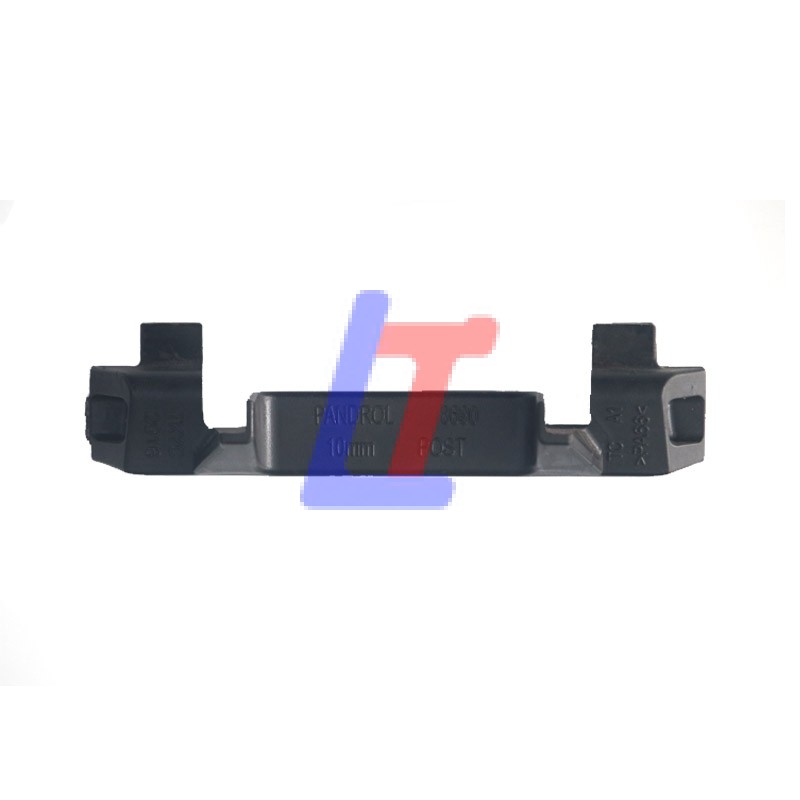

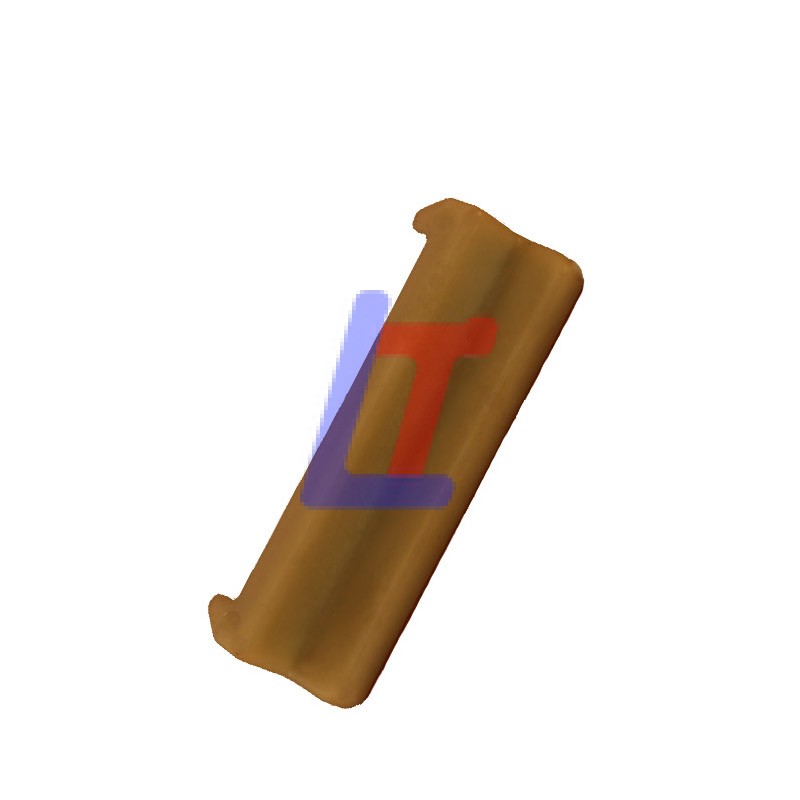

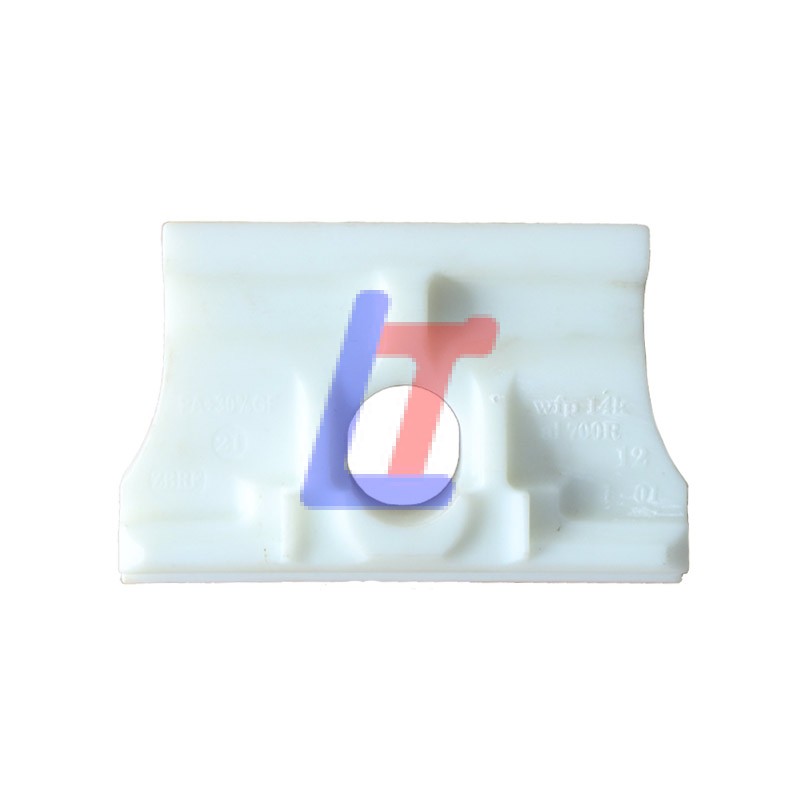

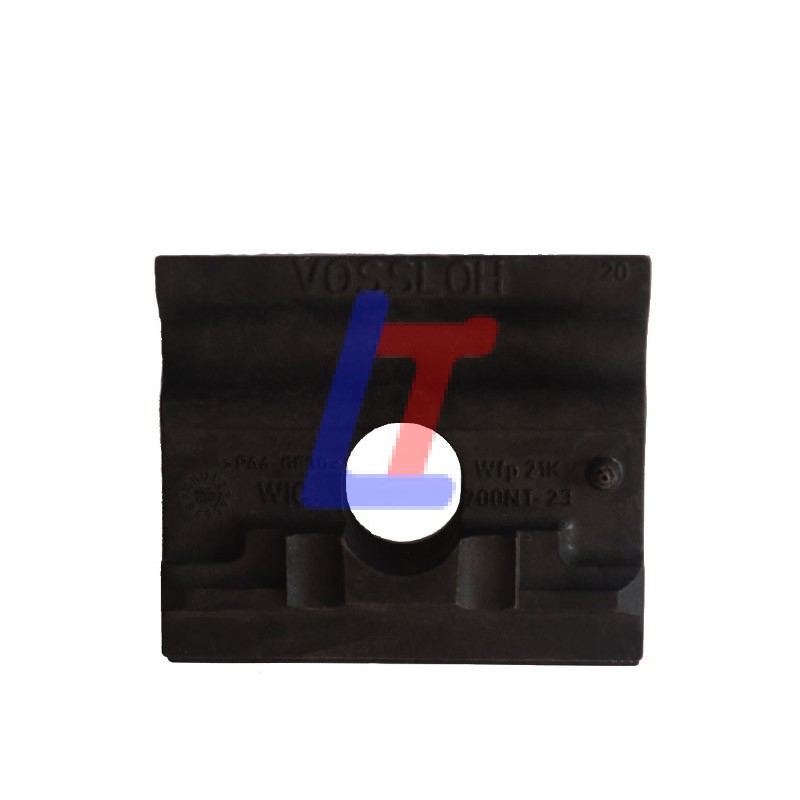

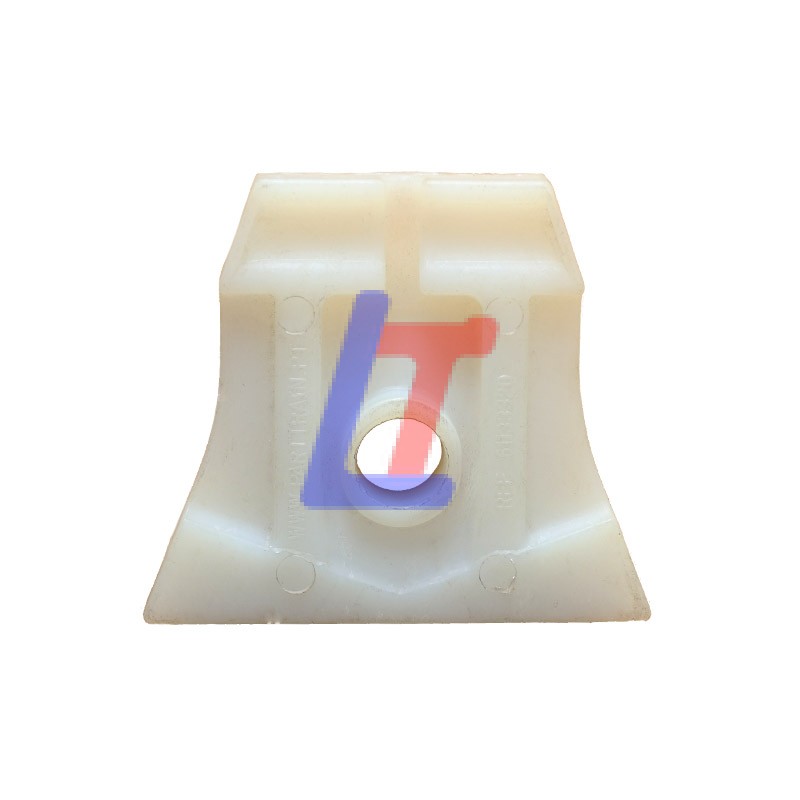

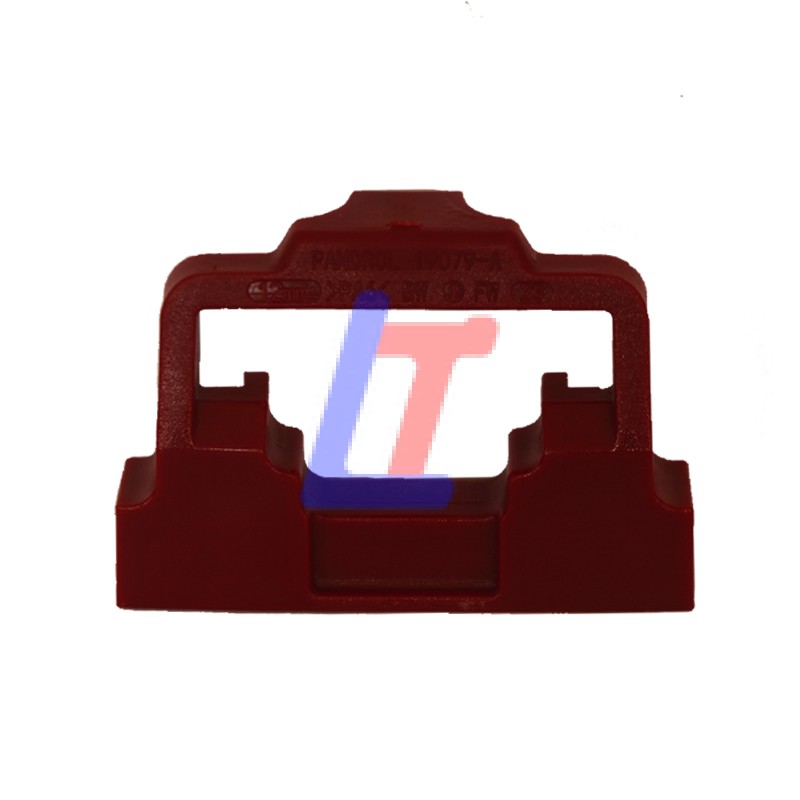

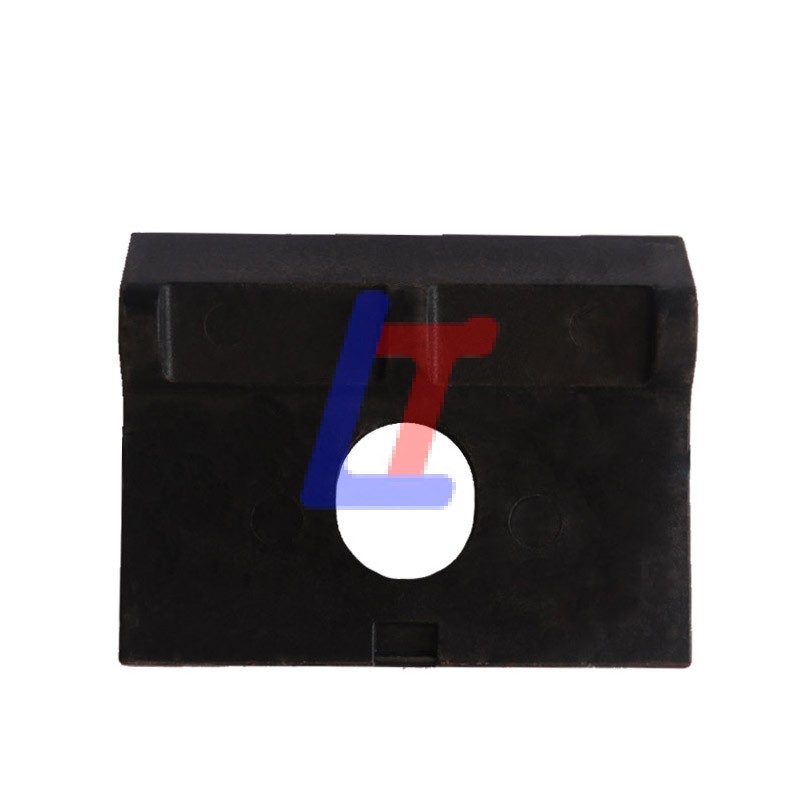

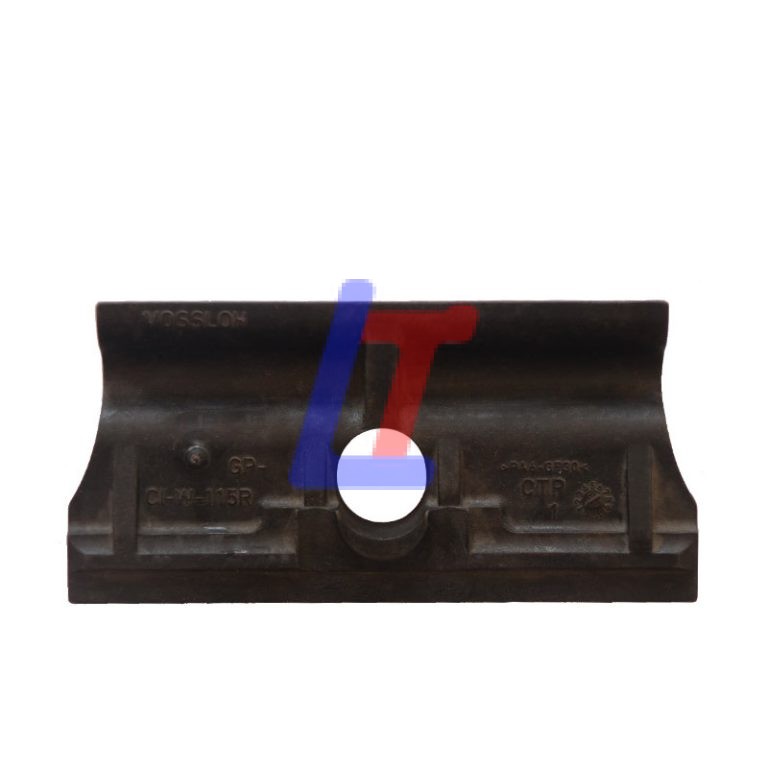

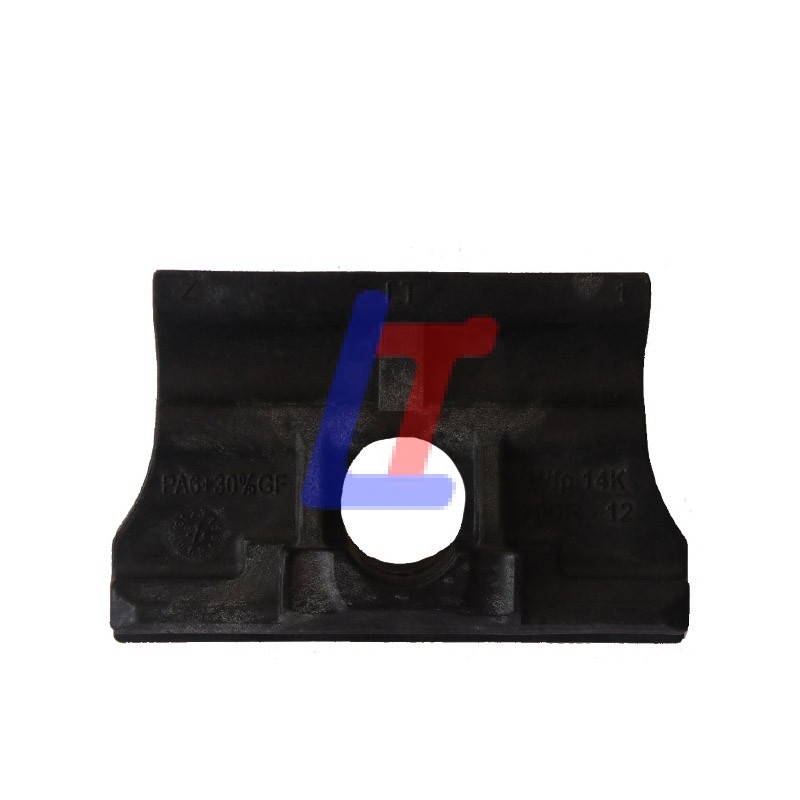

DescriptionOf Insulator
Insulator is one of the core components in the railway fastener system. It is mainly used to fix the position of the rail, adjust the gauge and transmit lateral force. It also has insulation function. Its design directly affects the geometric stability, safety and maintenance efficiency of the track.
Core functions of Insulator
1. Gauge adjustment:
By replacing Insulators of different thicknesses or adjusting their installation positions, the gauge of the rail can be precisely controlled.
2. Transmission of lateral force:
Transmit the lateral force generated by the train to the sleeper or the ballast to prevent the rail from rolling over or shifting.
3. Insulation protection:
Block the current path between the rail and the sleeper to ensure the insulation safety of the electrified railway.
4. Environmental adaptability:
Through salt spray test and weather resistance test, it can adapt to harsh environments such as high cold, hot and humid, and coastal salt spray.
5. Convenient maintenance:
The insulator and the fastener system are fixed by slot or bolt, and can be replaced without disassembling the rail, which greatly shortens the maintenance time.
TechnicalSpecificationsof Insulator
|
Name |
Insulator |
|
Material |
PA6+30%GF,PA66+30%GF |
|
Standard Reference |
UIC60,UIC54,Wfp14k-12 |
|
Application |
60kg (UIC) rail, 52kg rail, 136RE Rail, 90R, 75R, 50R, 60R etc |
|
General color |
white, dark brown and black |
|
Packing |
Normal export packing, European standard pallet or as per customer’s requirements |
|
Technical Parameter |
Range |
Unit |
Actual |
|
Density |
1.3-1.45 |
g/cm |
1.45 |
|
Tensile Strength |
≥170 |
Mpa |
178 |
|
Elongation |
≤4.4 |
% |
4.0 |
|
Bending Strength |
≥250 |
Mpa |
290 |
|
Impact Strength |
≥80 |
KJ/㎡ |
85 |
|
Melting Point |
250-270 |
℃ |
270 |
|
Insulation Resistance |
≥1×108 |
Ω |
5×108 |
|
Hardness |
≥110 |
HRR |
118 |
Advantagesof Insualtor
How to Find a Qualified Rail Fastener Manufacturer?
Please choose LTRF.
Why Choose LTRF?
- Strong Technical Expertise
LTRF boasts a dedicated R&D center. Moreover, it maintains long-term collaborations with major industry players such as China Railway, CRCC, and the Academy of Railway Sciences. In addition, it also partners with leading railway universities. As a result, LTRF has been able to develop various innovative fastening systems for both domestic and international markets. Notably, all these systems possess independent intellectual property rights. Indeed, to date, LTRF holds over 30 invention and utility model patents.
- Professional Manufacturing
LTRF always aims for the best. We carefully choose the materials we use and make sure every part is made with great care and skill. And we believe in doing things perfectly, so we keep coming up with new ideas and check the quality of our products very carefully to make sure they’re good.
We work fast to make sure you get your order on time. And we offer good service before and after you buy something. At LTRF, we also focus on what our customers need. We’re committed to making good products and providing great service in everything we do.
- Competitive Pricing + Superior Quality
LTRF control the cost of each process, and the finance department updates the cost calculation regularly.
Furthermore, LTRF’s advanced testing equipment endows the company with comprehensive quality inspection capabilities for the entire fastener system. This meticulous quality-control measure is crucial for ensuring product reliability. Importantly, LTRF holds ISO and CRCC certification for railway products. These certifications not only demonstrate the company’s compliance with international and industry-specific standards but also enhance its credibility in the market.
