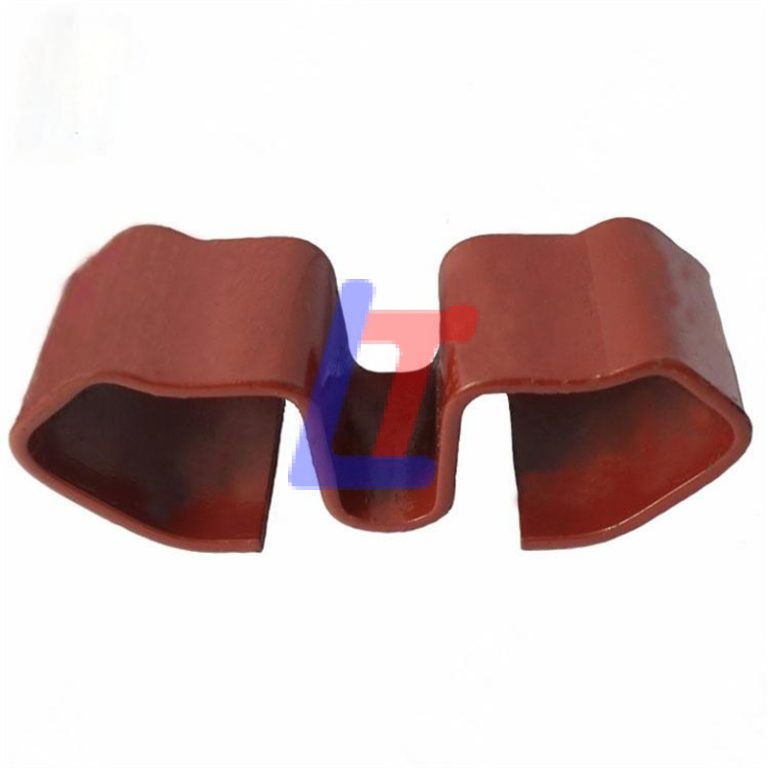

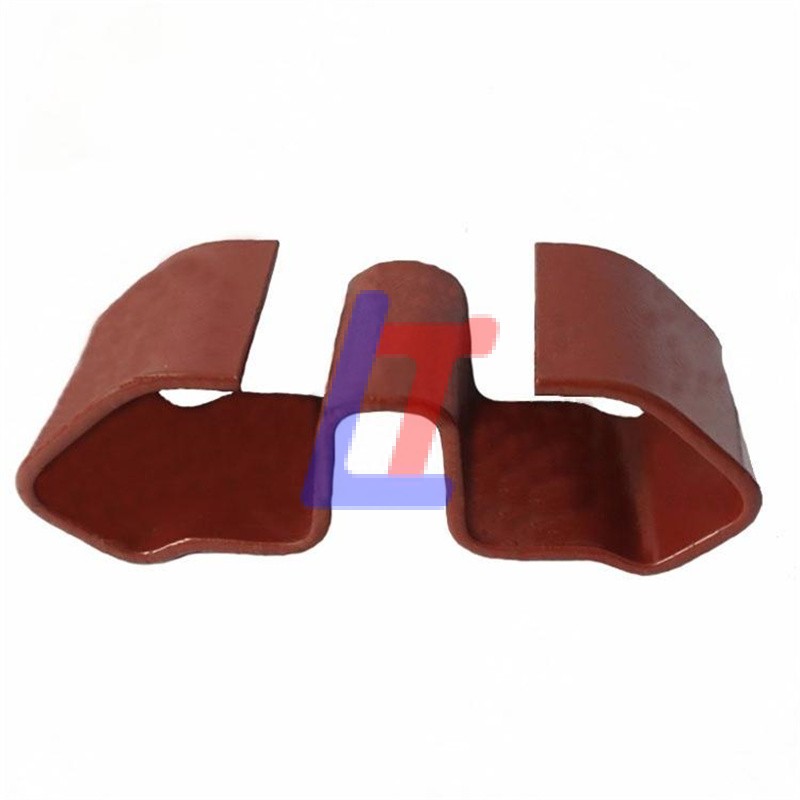

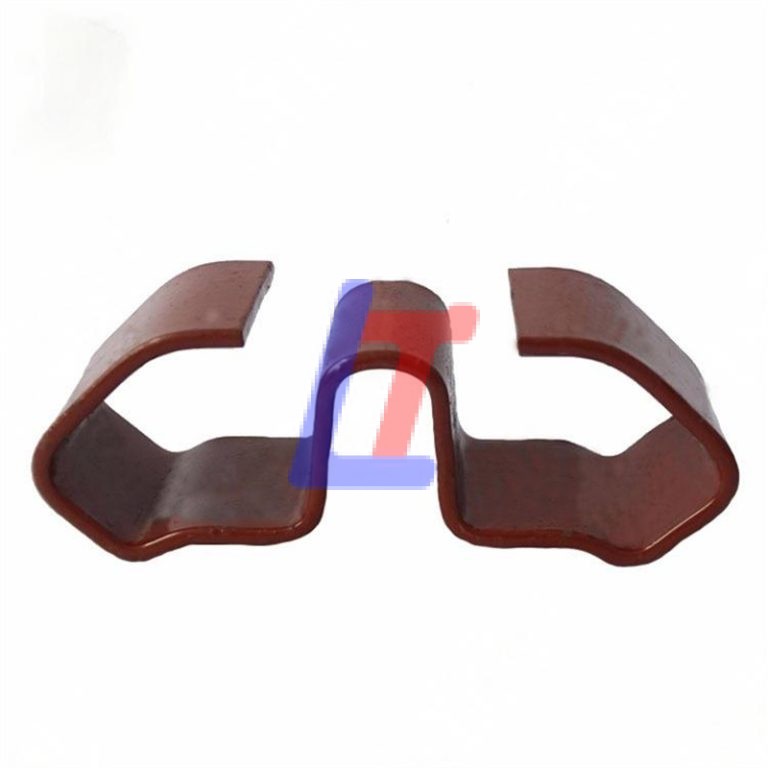

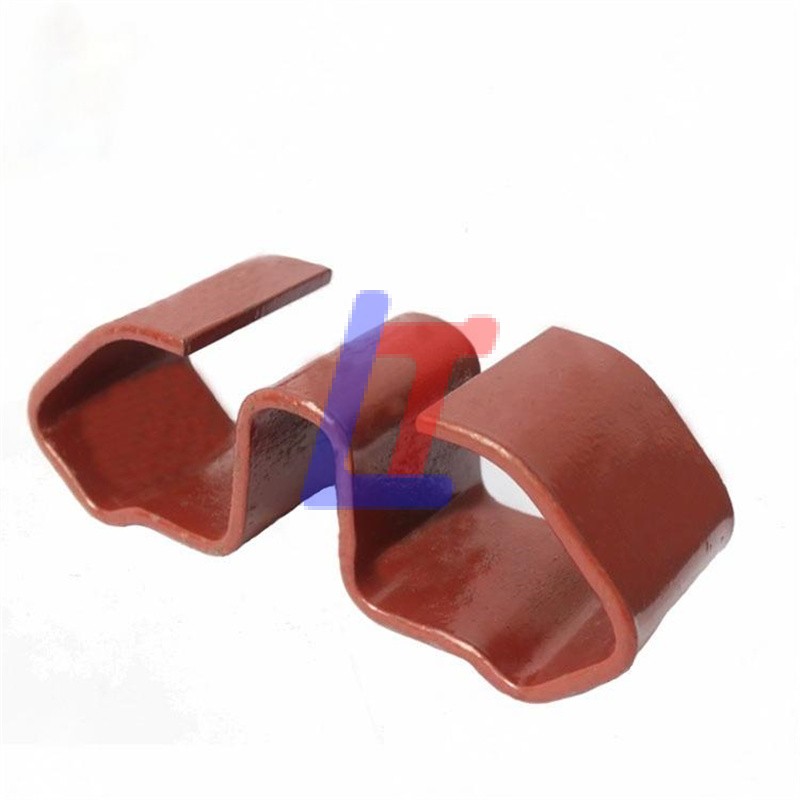

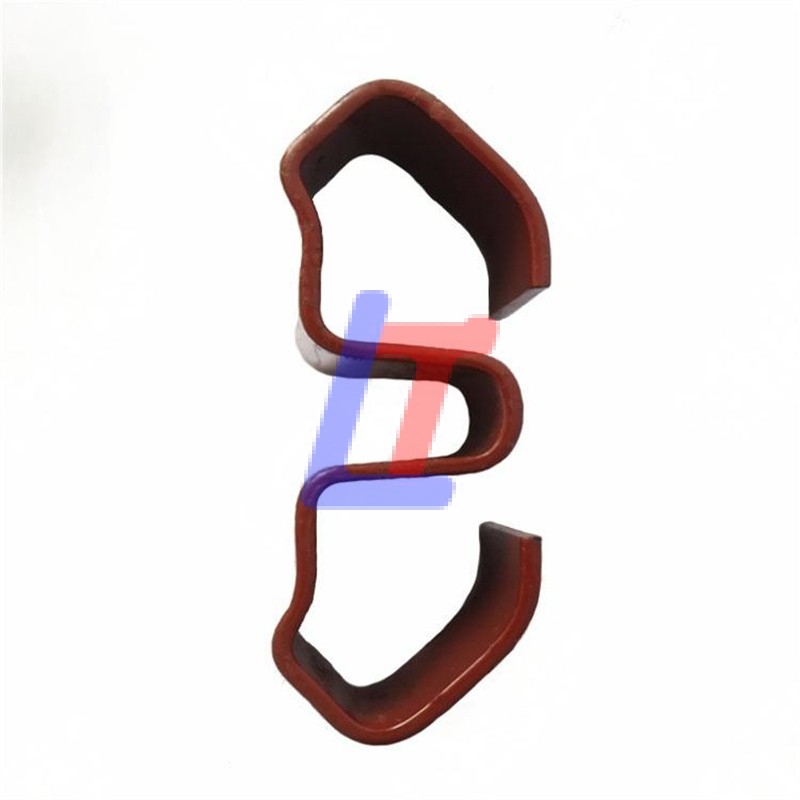

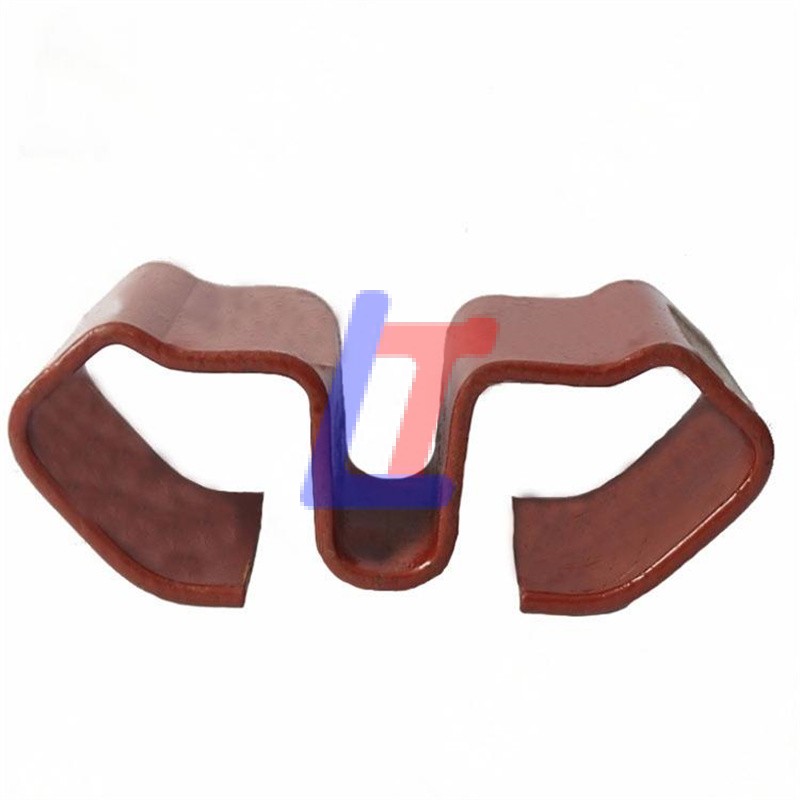

Description of Panlock
Panlock is a locking device for railway track fastener systems, mainly used to fix rails and sleepers to ensure that the rails remain stable under long-term train loads and temperature changes.
Working principle
Panlock fixes rails by mechanical self-locking + elastic buckling:
- Locking wedge insertion: During installation, the locking wedge is hammered or pressed into the fastener slot to form a rigid constraint.
- Elastic buckling: Apply continuous downward pressure to prevent the rail from jumping up and down or moving laterally.
- Anti-longitudinal slip: The inclined design of the locking wedge can resist the longitudinal force generated by the rail due to thermal expansion and contraction or train braking.
Installation steps
- Pre-install fastener system: place rail pads, insulating gaskets, etc. according to design requirements.
- Place rails: After adjusting the gauge and level, install elastic fasteners.
- Insert Panlock: Use special tools to knock the locking wedge into the fastener slot until it is fully locked.
- Inspection and acceptance: Ensure that the locking force meets the standard and there is no looseness or deflection.
Function
- Prevent longitudinal displacement of rails: Prevent rails from creeping when temperature changes or train brakes.
- Enhance track stability: Reduce relative movement between rails and sleepers, and improve track geometry retention.
- Reduce maintenance costs: Reduce problems such as bolt loosening and gauge changes caused by loose rails, and extend track life.
- Adapt to high-speed railway needs: Can still maintain stable locking under high-frequency vibration and high-load environments.
Panlock is a key component in the railway track fastener system. Through the dual effects of mechanical locking + elastic constraint, it significantly improves the stability and anti-creeping ability of the rails, especially suitable for high-speed and heavy-load railways.
Technical Specifications
|
Name |
Panlock |
|
Type |
E1809;E1817;E2001;E2003;E2006;E2007;E2009;E2009AV; E2039;E2055;E2056;E2063;E2099;SKL1;SKL3;SKL12;SKL14; PR85;PR309;PR401;PR415;PR601;APC-4 Rail Clip; CJ-2 Spring Blade;Nabla Spring Blade;Russia Rail Clip; Deenic Clip,etc. Other types according to customer’s drawing |
|
Standard Reference |
BS970, DIN17221, GB/T1222, GB/T4357, GB/T4358,etc. |
|
Surface Treatment |
Oil Black,Static Coating,Dacromet,HDG,Upon customer requirement |
|
Material |
60Si2Mn,60Si2Cr,38Si7 |
|
Test Item |
1.Salt Spray Test(120h) 2.Fatigue Test≥5000000times; 3.Hardness:42-48; 4.Decarburization Layer≤0.2mm; 5.Clamping Force 6.Residual Deformation/KN＜1.00mm |
Advantages
How to Find a Qualified Rail Fastener Manufacturer?
Please choose LTRF.
Why Choose LTRF?
- Strong Technical Expertise
LTRF boasts a dedicated R&D center. Moreover, it maintains long-term collaborations with major industry players such as China Railway, CRCC, and the Academy of Railway Sciences. In addition, it also partners with leading railway universities. As a result, LTRF has been able to develop various innovative fastening systems for both domestic and international markets. Notably, all these systems possess independent intellectual property rights. Indeed, to date, LTRF holds over 30 invention and utility model patents.
- Professional Manufacturing
LTRF always aims for the best. We carefully choose the materials we use and make sure every part is made with great care and skill. And we believe in doing things perfectly, so we keep coming up with new ideas and check the quality of our products very carefully to make sure they’re good.
We work fast to make sure you get your order on time. And we offer good service before and after you buy something. At LTRF, we also focus on what our customers need. We’re committed to making good products and providing great service in everything we do.
LTRF control the cost of each process, and the finance department updates the cost calculation regularly.
Furthermore, LTRF’s advanced testing equipment endows the company with comprehensive quality inspection capabilities for the entire fastener system. This meticulous quality-control measure is crucial for ensuring product reliability. Importantly, LTRF holds ISO and CRCC certification for railway products. These certifications not only demonstrate the company’s compliance with international and industry-specific standards but also enhance its credibility in the market.
