Description Of Rail Dowel

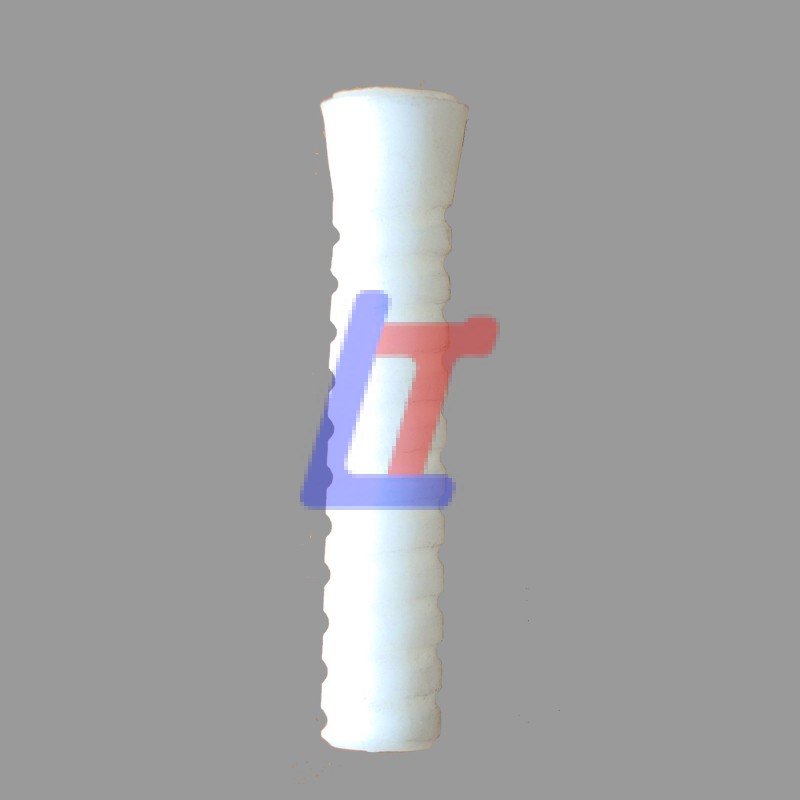

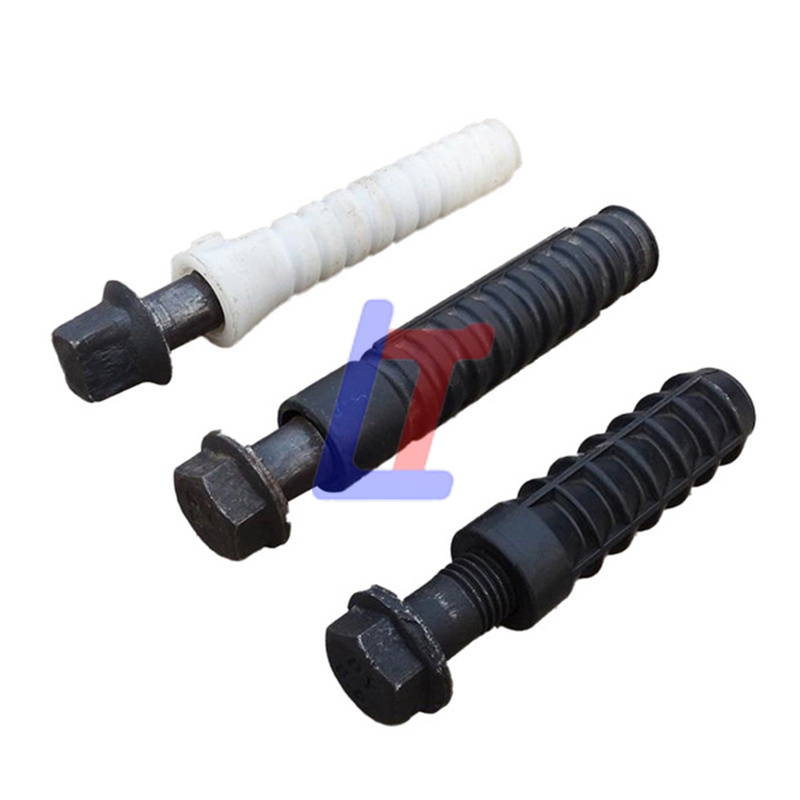

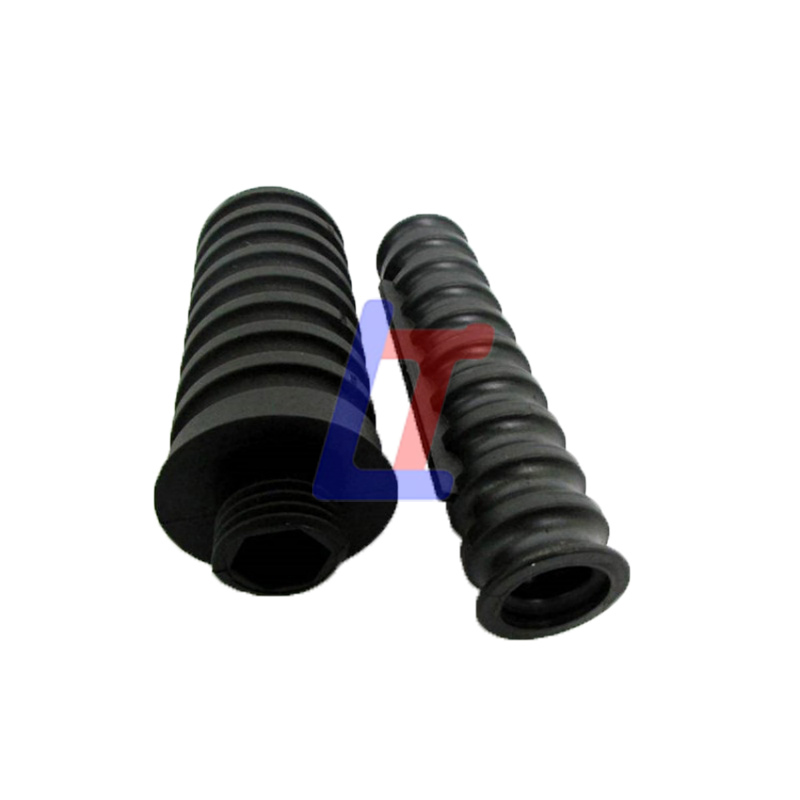

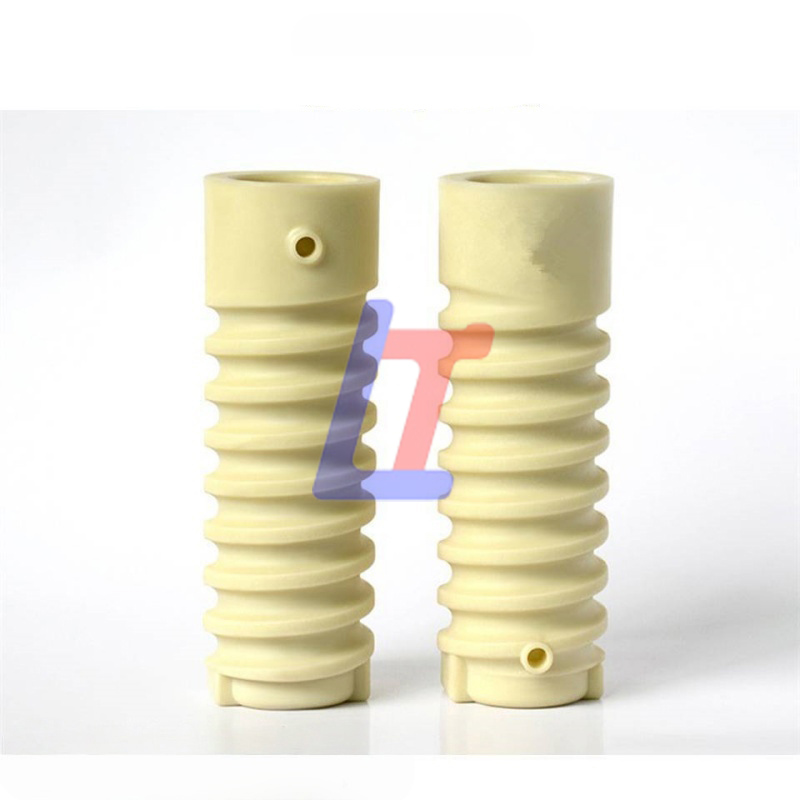

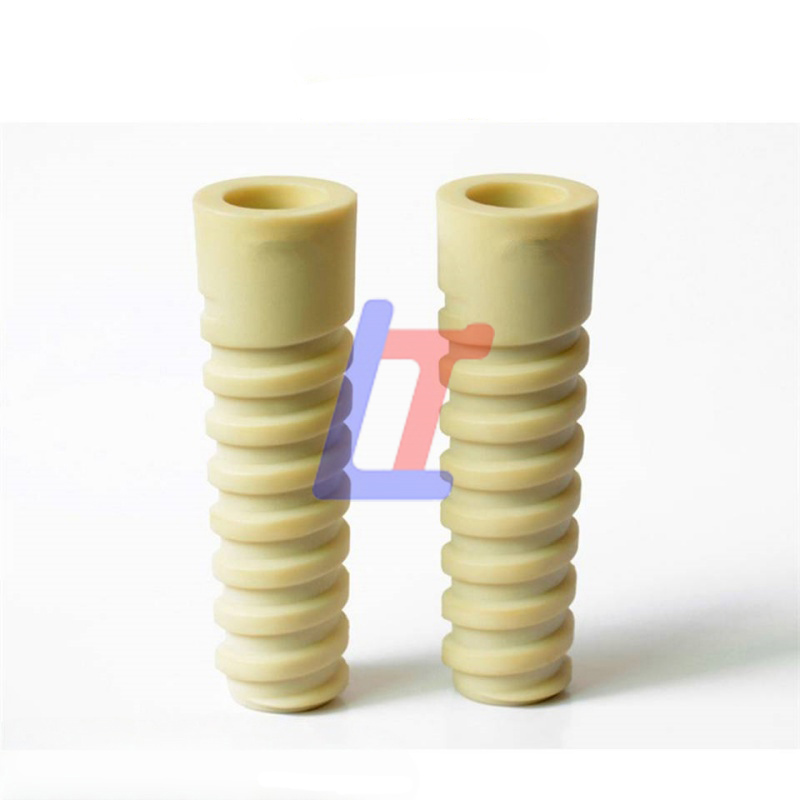

A rail dowel, also known as a rail plastic dowel, rail plastic sleeve, or plastic insert, is a component used in rail fastening systems. It’s a cylindrical piece, often made of plastic like HDPE or PA66, that’s pre-embedded into a concrete or wooden sleeper. It works in conjunction with screw spikes, guide plates, and rail clips to secure the rail to the sleeper. The dowel provides a secure, threaded receptacle for the screw spike, ensuring a stable and reliable connection.
Details:
1.Anchor spikes:
Provide a threaded connection base for spiral spikes to ensure a firm combination of the fastening system and the sleeper.
2.Adjusting gauge/level:
Some designs allow for fine-tuning the track position through sleeves.
3.Anti-loosening and anti-rust:
The inner wall thread or coating can prevent the rail spike from loosening and corroding.
4.Insulation:
Some of the bushings are made of materials such as nylon, enabling the insulation of the track circuit.
Technical Specifications
| Material | HDPE | PA |

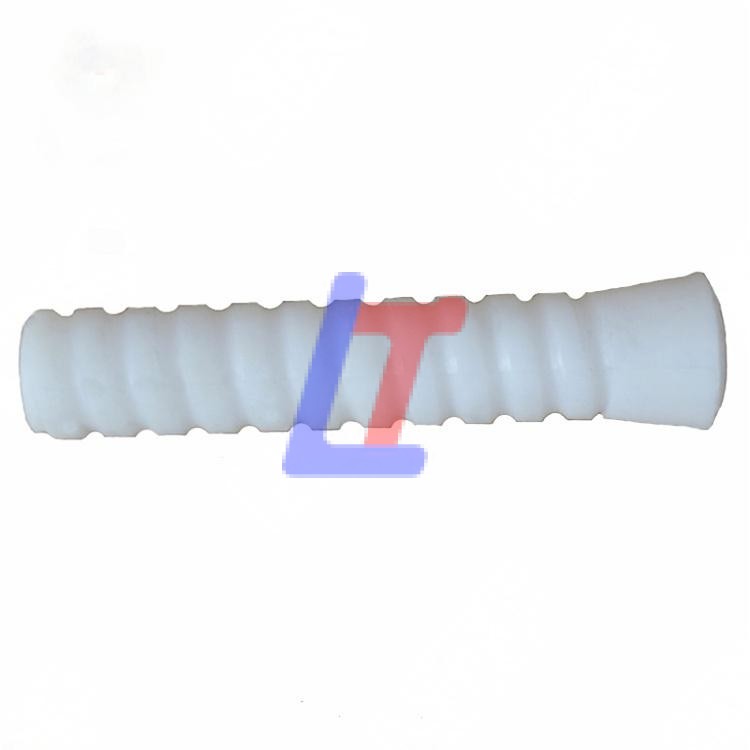

| Type | Sdu9 | Sdu25 |
| Color | White, Black, Beige or according to customer’s drawings | White, Black, Beige or according to customer’s drawings |
| Tensile Strength | ≥19Mpa | ≥170Mpa |
| Melting Point | 170-190°C | 250-270°C |
| Insulation Resistance | ≥1×1010Ω | ≥1×108Ω |
| Hardness | ≥98A | ≥110HRR |
| Density | 0.95-0.98g/cm3 | 1.3-1.45g/cm3 |
| Elongation | >80% | ≤4.4% |
