Description

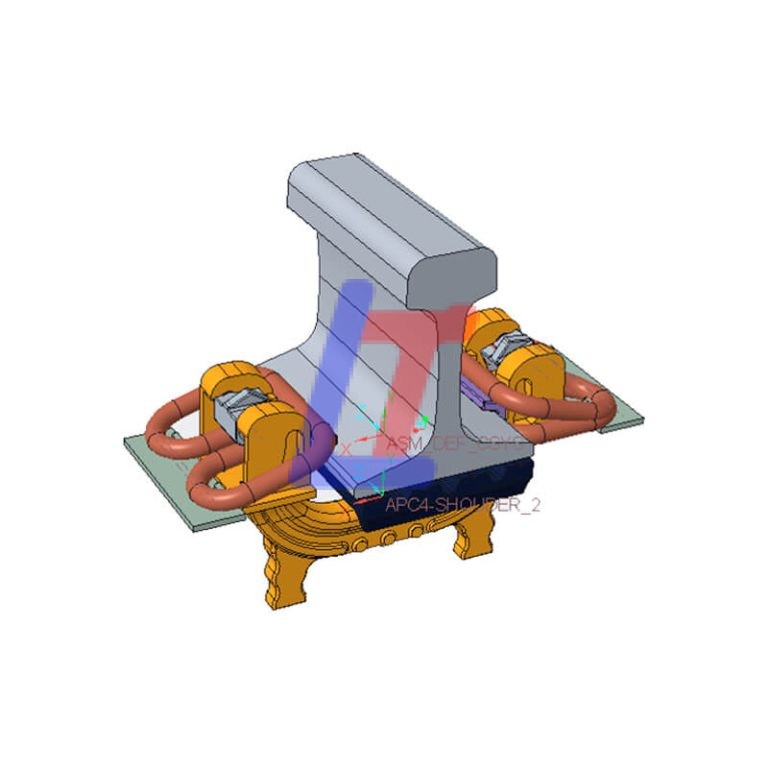

The APC-4 Rail Fastening System is used for fastening P65 rails with reinforced concrete sleepers manufactured according to TU 3185-010-01115863-2004. Specially designed for use on high-load broad-gauge tracks, APC-4 Rail Fastening System is economically profitable (including due to low detail) and reliable.
The APC rail anchor fastening was manufactured for use on continuous track of freight-stressed highways.
APC has a number of advantages over traditional fastenings KB-65 and ZhBR-65.
1,APC-4 Rail Fastening System Used:
APC-4 Rail Fastening System are widely used in Russia,Mongolia.
2,High load capacity:
Suitable for heavy-duty railways in Russia, the spring clips have strong fatigue resistance.
3,Simplicity of design:
Twice as few parts in the unit (10 instead of 23 in the KB-65 fastening), 3 times less weight of removable parts;
The clips are directly buckled into the embedded iron seat, without on-site drilling or welding, and the construction efficiency is improved by more than 30%.
4, Non-removable combined anchor:
Monolithically embedded in the under-rail zone of a reinforced concrete sleeper during its molding, combining the work of two clamp units, including in the horizontal transverse plane; Single clip can be replaced independently without disassembling the rails or destroying the sleeper structure.
5, High stability:
Stable assembly force pressing the rail to the sleeper in the fastening unit within the range from 1.6 to 2.0 tf.
The embedded iron seat and concrete sleeper are integrally formed to avoid the problem of loosening of traditional bolts.
Technical Specifications
|
Item |
Component |
Photo |
Мaterail |
Surface Treatment |
Qty For One Sleeper |
Specs |
|
1 |

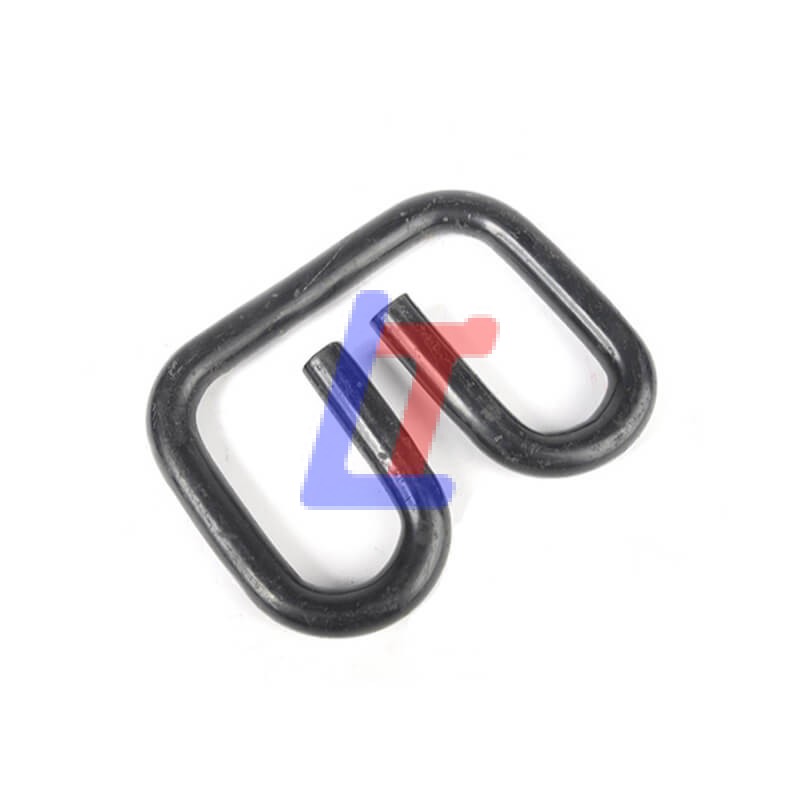

APC-4 Rail Clip |
|
60Si2Mn |
Oil Black, Static Coating, Dacromet,HDG, Upon customer requirement |
4 |
Fatigue test: ≥2 millions Hardness: 44.5～50.5 HRC Residual deformation≤ 1.0mm |
|
2 |

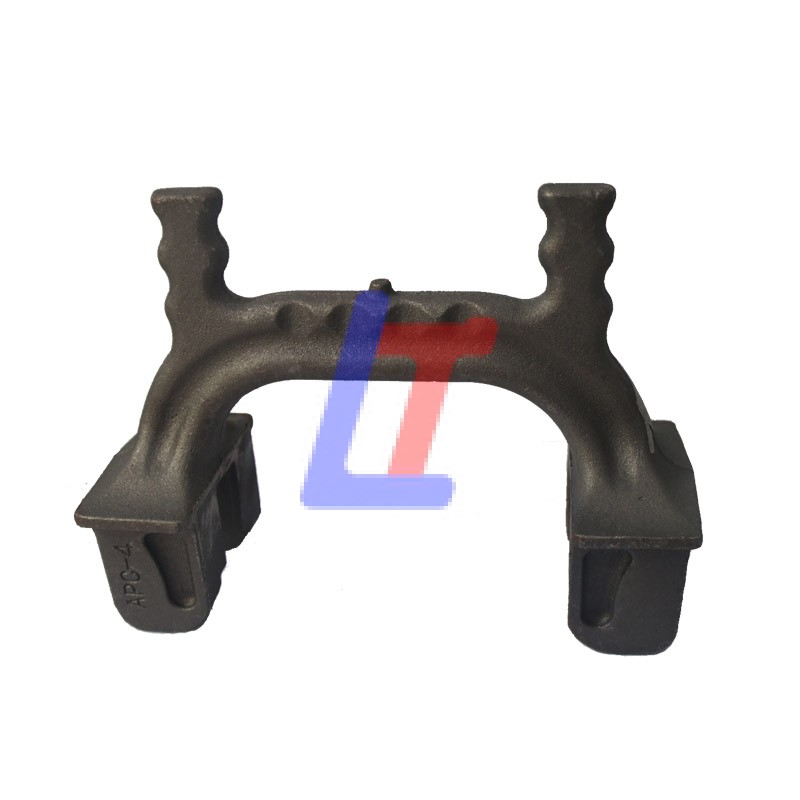

APC-4 Shoulder/Anchor |
|
QT450-12 |
Natural |
2 |
Tension Strength≥450Mpa Elagnation≥12% |
|
3 |

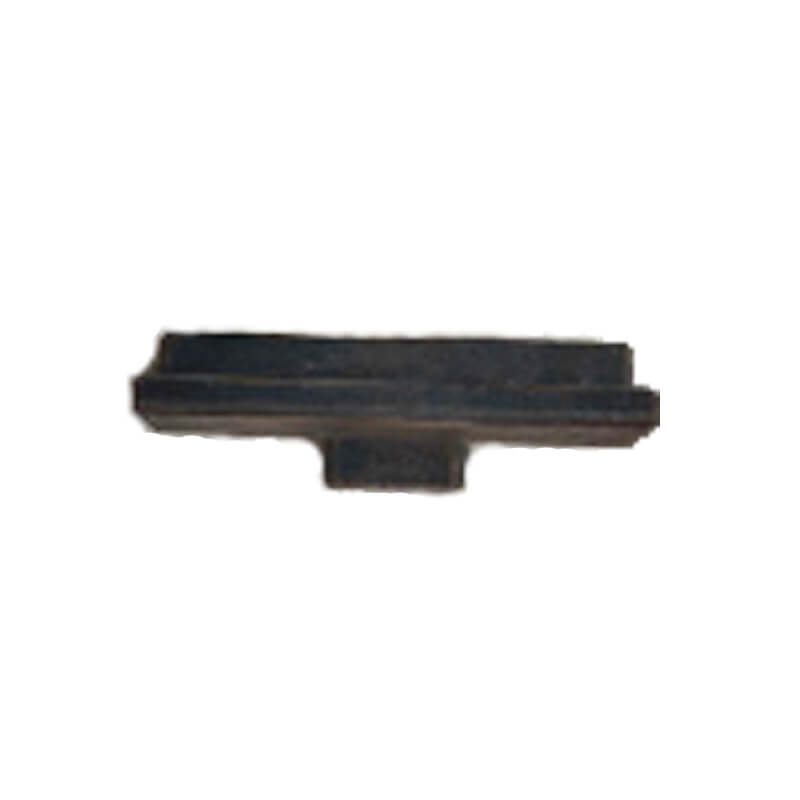

Rail Insulator |
|
PA+GF |
Natural |
4 |
Wear test≤1.4mm Water absorption rate≤1.8% |
|
4 |

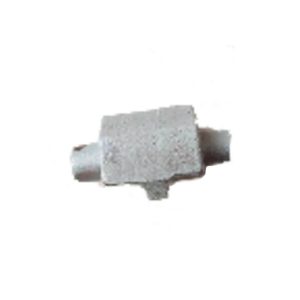

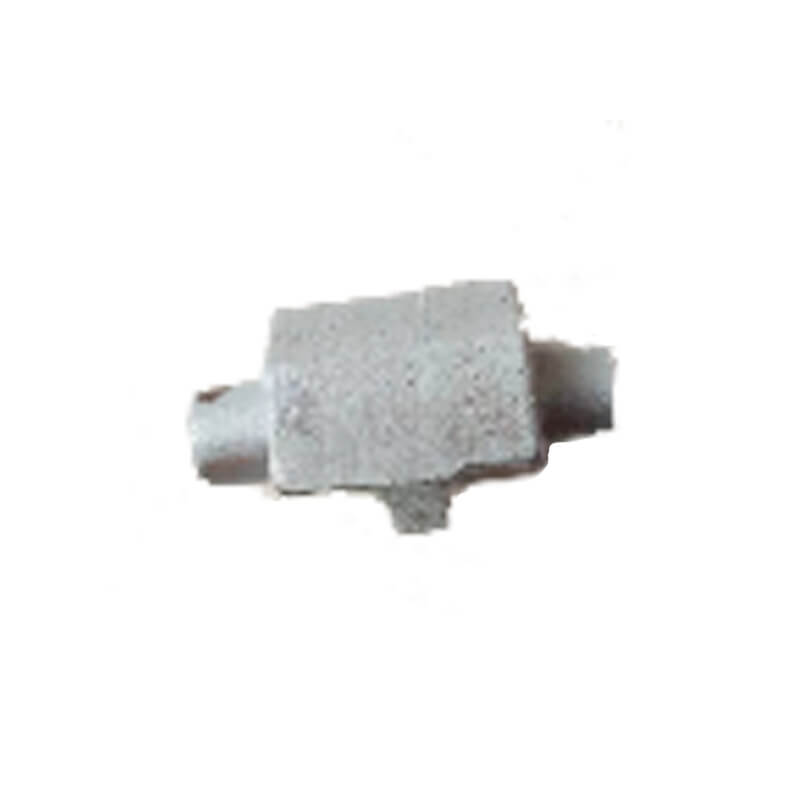

Regulator |
|
Q235 |
Oil Black |
4 |
Tensile strength≥400Mpa Yield strength≥250Mpa Elongation rate≥15% |
|
5 |

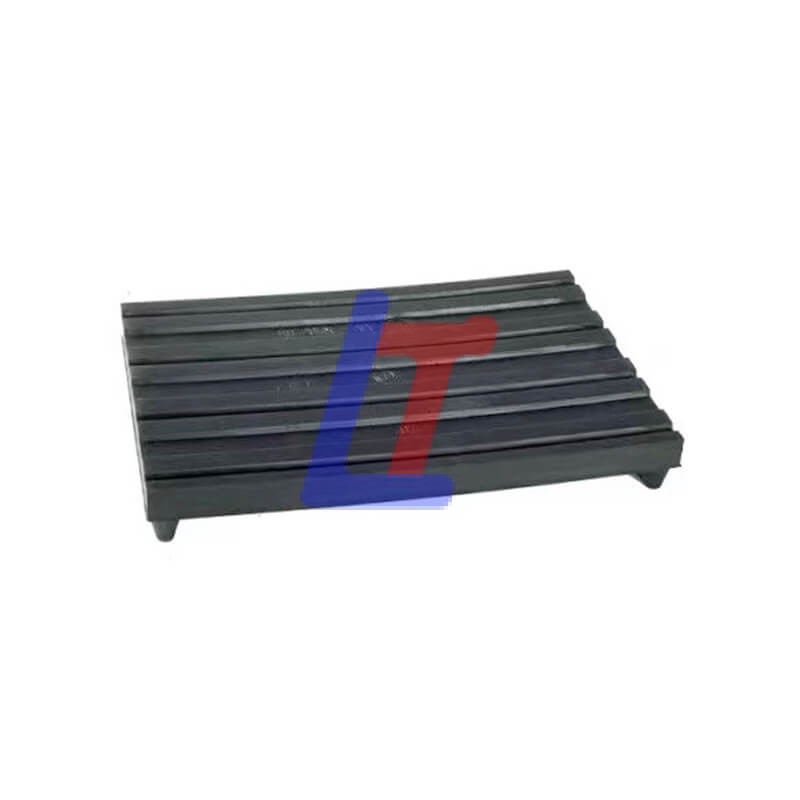

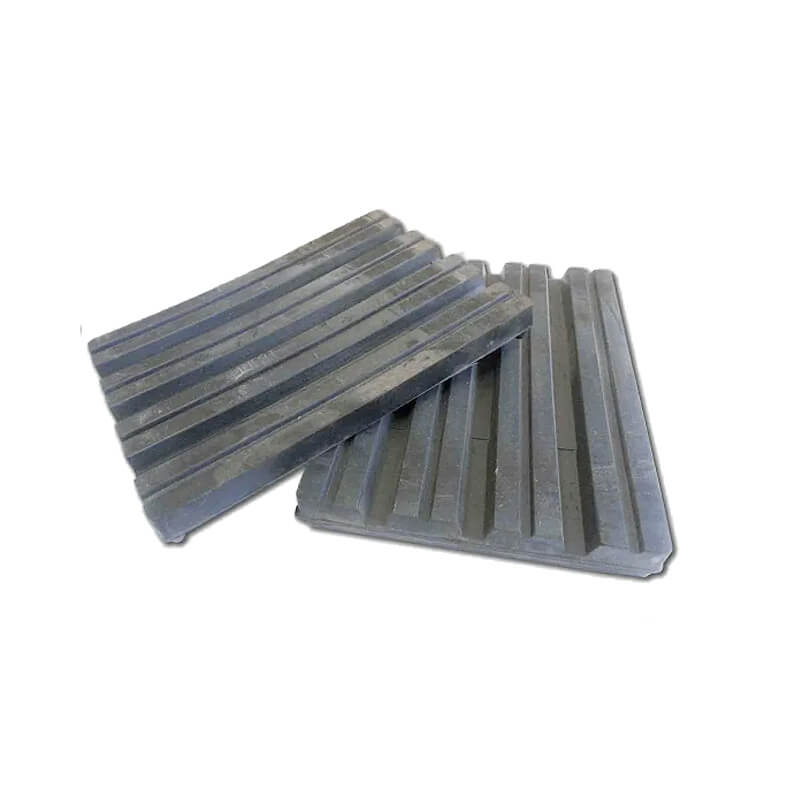

Rail Pad |
|
Rubber |
Natural |
2 |
Conditional tensile strength, MPa, not less than 7.0 Shore A hardness, conventional units, within 60-90 |
|
6 |

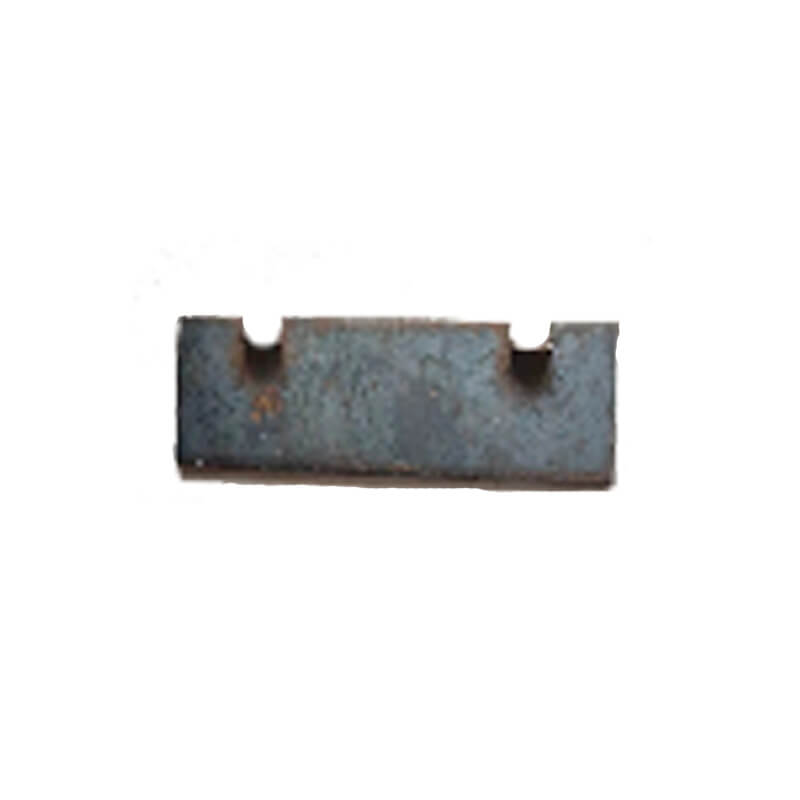

Fixing plate |
|
cтaли мapки Cт |
Oil Black |
4 |
Smooth and clean, without burrs or sharp edges |
Advantages
How to Find a Qualified Rail Fastener Manufacturer?
Please choose LTRF.
Why Choose LTRF?
- Strong Technical Expertise
LTRF boasts a dedicated R&D center. Moreover, it maintains long-term collaborations with major industry players such as China Railway, CRCC, and the Academy of Railway Sciences. In addition, it also partners with leading railway universities. As a result, LTRF has been able to develop various innovative fastening systems for both domestic and international markets. Notably, all these systems possess independent intellectual property rights. Indeed, to date, LTRF holds over 30 invention and utility model patents.
- Professional Manufacturing
LTRF always aims for the best. We carefully choose the materials we use and make sure every part is made with great care and skill. And we believe in doing things perfectly, so we keep coming up with new ideas and check the quality of our products very carefully to make sure they’re good.
We work fast to make sure you get your order on time. And we offer good service before and after you buy something. At LTRF, we also focus on what our customers need. We’re committed to making good products and providing great service in everything we do.
- Competitive Pricing + Superior Quality
LTRF control the cost of each process, and the finance department updates the cost calculation regularly.
Furthermore, LTRF’s advanced testing equipment endows the company with comprehensive quality inspection capabilities for the entire fastener system. This meticulous quality-control measure is crucial for ensuring product reliability. Importantly, LTRF holds ISO and CRCC certification for railway products. These certifications not only demonstrate the company’s compliance with international and industry-specific standards but also enhance its credibility in the market.
