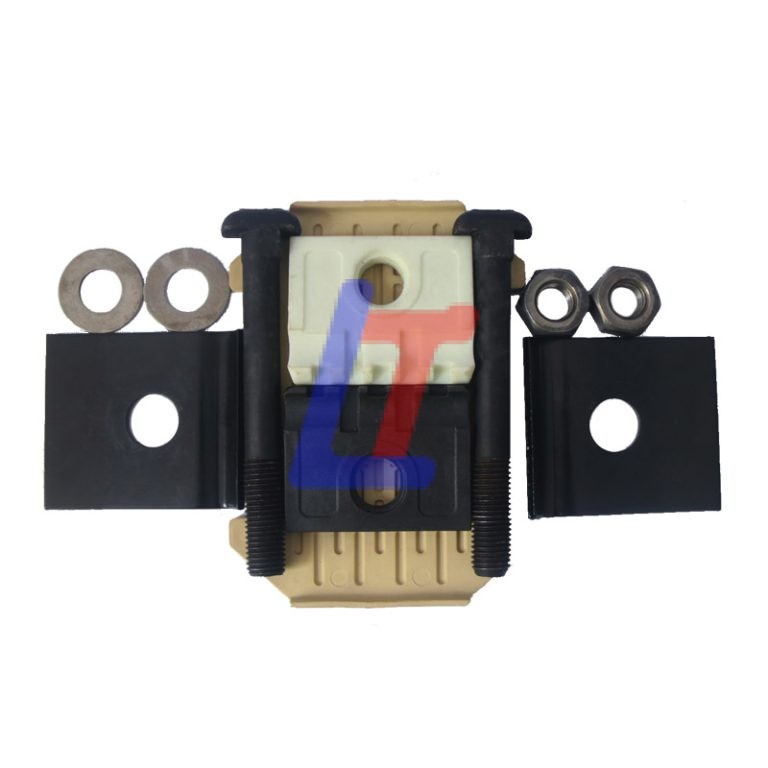

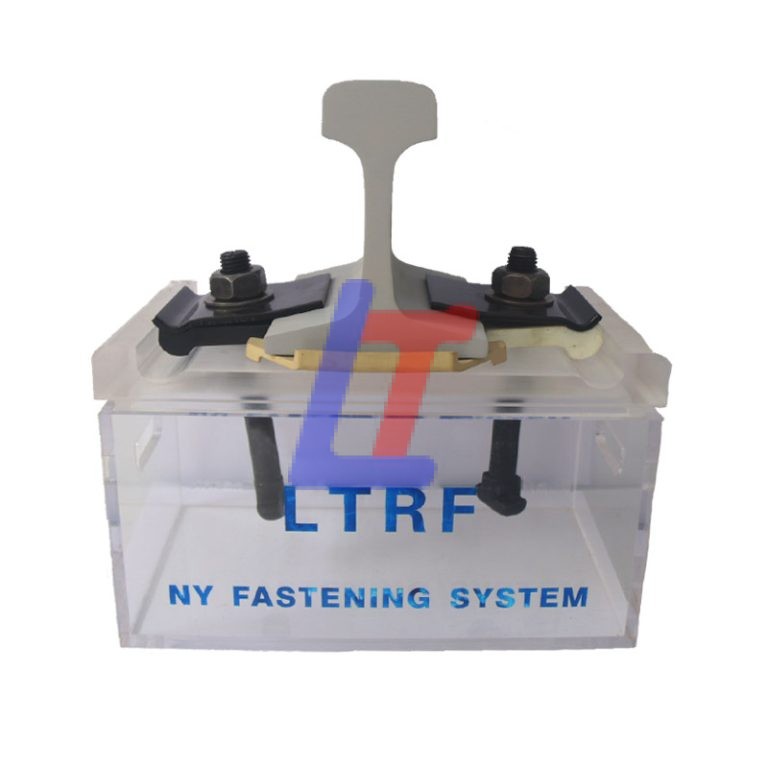

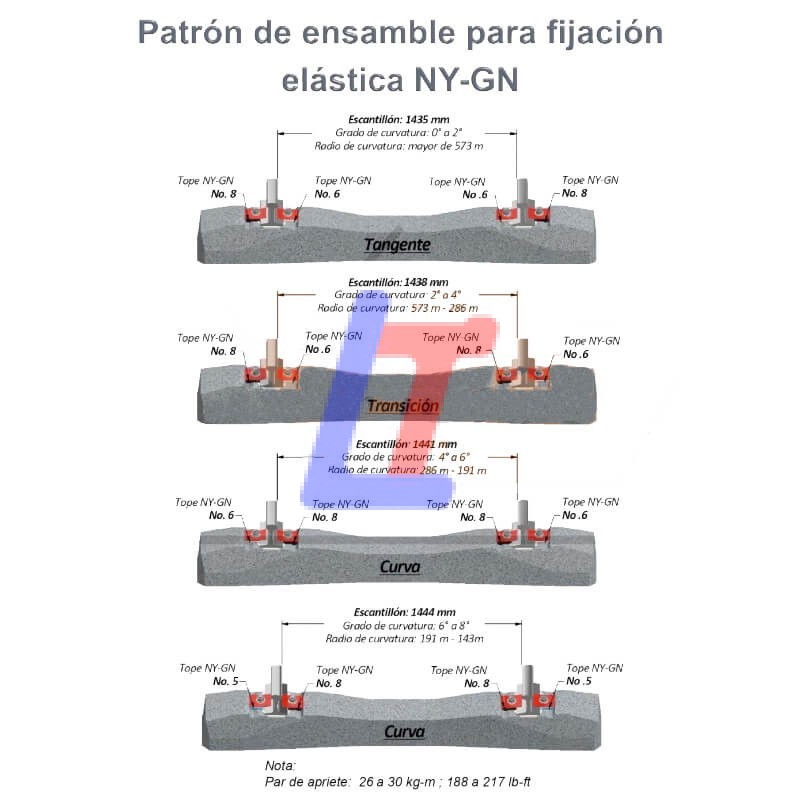

Description of GN Rail Fastening System
GN Rail Fastening System is used to secure steel rails and railroad ties. The function of the rail fastening system is to maintain the gauge and prevent vertical and horizontal movement of the rails relative to the position of the tie. The following is a detailed introduction:
Feature
1,GN Rail Fastening System widely used:
GN Rail Fastening System are widely used in Europe, Africa and South America. This rail fastening system is suitable for 115RE rails.
2, High strength and durability:
GN rail fastening systems are designed to withstand heavy loads and frequent use. They not only have high fatigue strength but also maintain their structural integrity and performance stability over a long period of time.
3,Excellent elastic recovery capacity:
GN Rail Fastening System can effectively buffer the impact force generated by the passage of trains and quickly return to its original state, which helps to reduce track wear and extend service life. In addition to reducing noise and vibration, spring blade technology is essential for railway lines that run through residential areas.
4,Good insulation performance:
It can effectively prevent current leakage to ensure the safe operation of the fastening system.
5,Easy installation and maintenance:
GN Rail Fastening System are designed with easy installation and removal in mind, which makes daily maintenance of tracks more convenient and quick, further reducing maintenance costs and time.
Technical Specifications
|
Item |
Componente |
Photos |
Material |
Surface Treatment |
Qty For One Sleeper |
Specs |
|

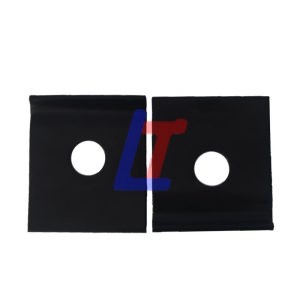

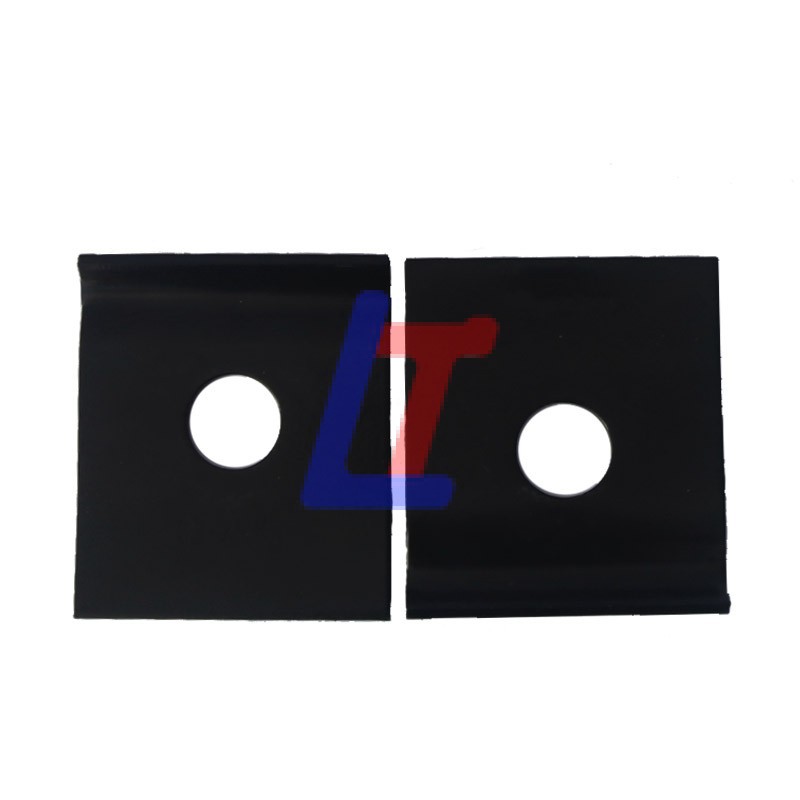

A |
|
60Si2Mn |
Static coating Upon customer requirement |
4 |
Nylco 9.00.10.023 |
|
|

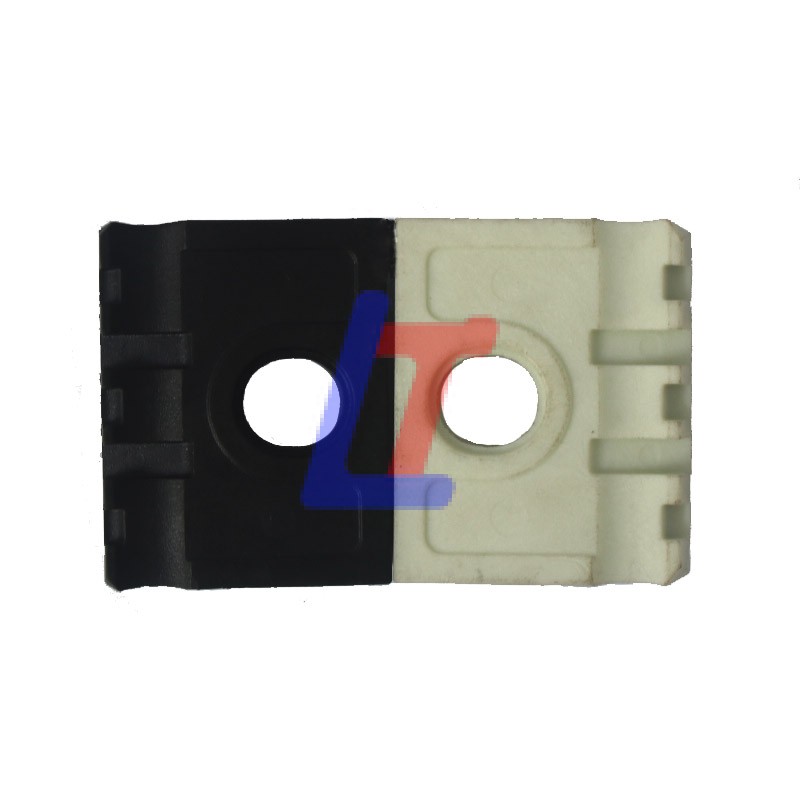

B |
|
PA6 |
Natural |
2 |
Nylco 9.00.10.006 Density:1.39g/cm³ Tensile strength:165Mpa Elongation:3.5% Melting point:226℃ Insulation resistance:≥1.9×1012Ω Hardness:≥114HRR |
|
|

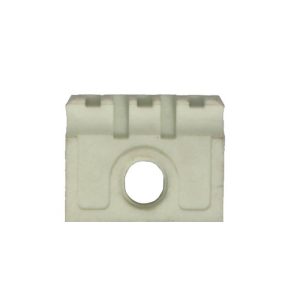

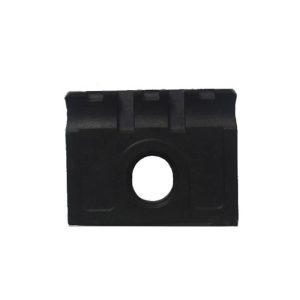

C |
|
PA6 |
Natural |
2 |
||
|

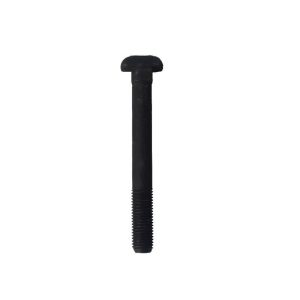

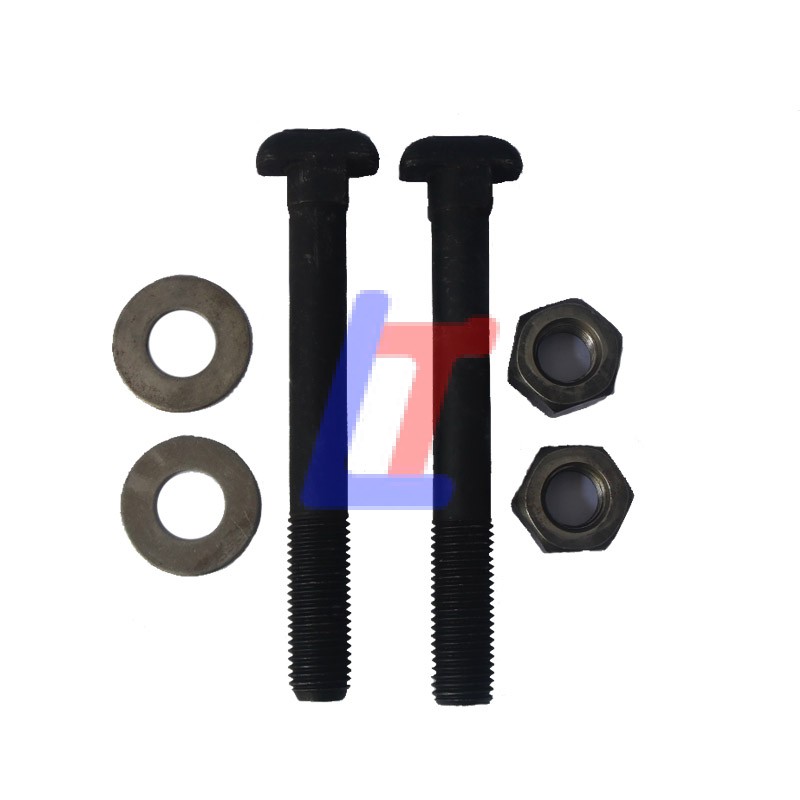

D |
|
45# Steel |
Oil Black,Zinc Dacromet,HDG, Upon customer requirement |
4 |
STEDEF No. S321/0 Tensile strength:≥800Mpa Yield strength:≥640Mpa Elongation:≥12% |
|
|

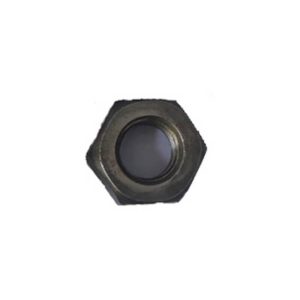

Nut |
|
45# Steel |
/ |
|||
|

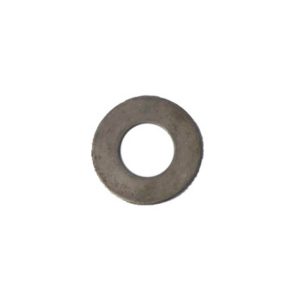

Washer 50*23*3 |
|
Q235 |
/ |
|||
|
E |

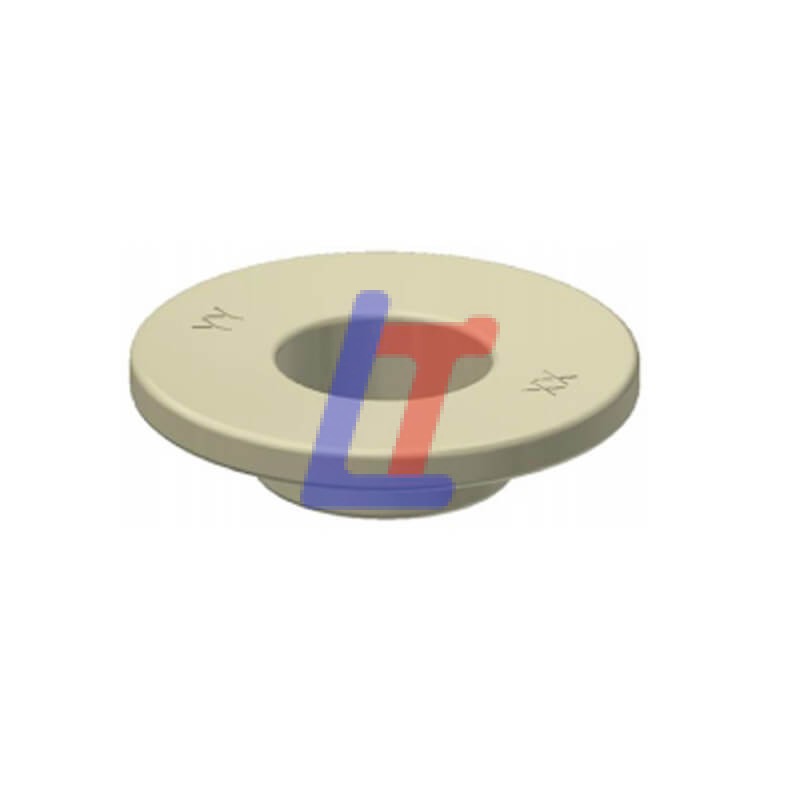

Insulating pulley |
|
PA6 |
Natural |
4 |
Nylco 9.00.10.018 Density:1.15g/cm³ Tensile strength:66.3Mpa Elongation:31.3% Melting point:228℃ Insulation resistance:≥2.8×1012Ω Hardness:≥114HRR |
|

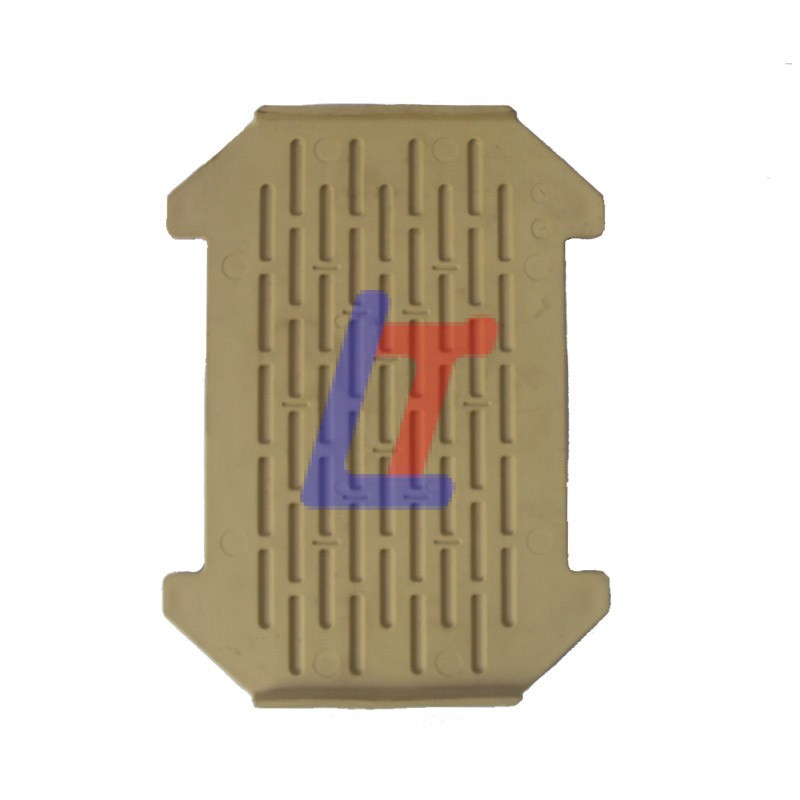

F |
Rail Pad U-2 |
|
TPE |
Natural |
2 |
Nylco 9.00.10.026 Density:1.09g/cm³ Tensile strength:4.23Mpa Tensile Modulus:2.97Mpa Melting point:200-220℃ Shore hardness:≥40D |
