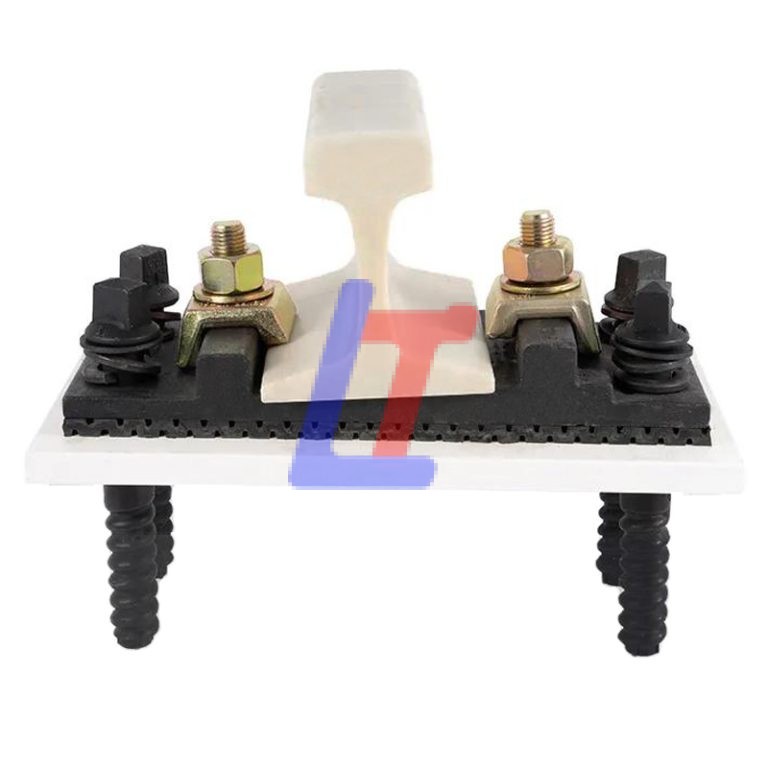

Description of KPO Rail Fastening System
Excellent Fixation Performance
Excellent Fixation Performance: Firstly, the KPO Rail Fastening System can firmly fix the rails on the sleepers. As a result, it effectively prevents the rails from moving longitudinally and laterally relative to the sleepers. Consequently, this ensures the stability of the track, and ultimately provides a reliable guarantee for the safe operation of trains.
Certain Adjustment Capacity
Certain Adjustment Capacity: To begin with, the KPO Rail Fastening System allows for an adjustment of 30mm in the vertical direction and 30mm in the horizontal direction. Moreover, by inserting height adjustment shims under the iron plates, an additional 20mm adjustment in the vertical direction is achievable. In this way, it can meet different track laying requirements and thus adapt to terrain changes.
Material and Process Advantages
Material and Process Advantages: Typically, the KPO Rail Fastening System is made of high-quality materials. Subsequently, it goes through strict production processes and quality control. As a result, it boasts high strength and durability. In turn, it can withstand the loads and impacts generated by long-term train operation. Consequently, this significantly reduces the cost and maintenance workload of frequent fastener replacements.
Good Insulation Performance
Good Insulation Performance: It can effectively achieve electrical insulation between the rails and sleepers, preventing current leakage and signal interference, ensuring the normal operation of the railway signal system. This is particularly important for high-speed railways and electrified railways.
Usage Regions of KPO Rail Fastening System
European Region: Countries such as France and Sweden use KPO Rail Fastening System. France is relatively advanced in railway technology and applies KPO Rail Fastening System in its railway construction and track systems. Sweden’s railway construction may also adopt KPO Rail Fastening System.
African Region: Burkina Faso uses KPO Rail Fastening System in its metro construction or railway projects.
Technical Specifications of KPO Rail Fastening System
|
Component |
|||
|
Component |
Qty For One Sleeper |
Material |
Remark |
|

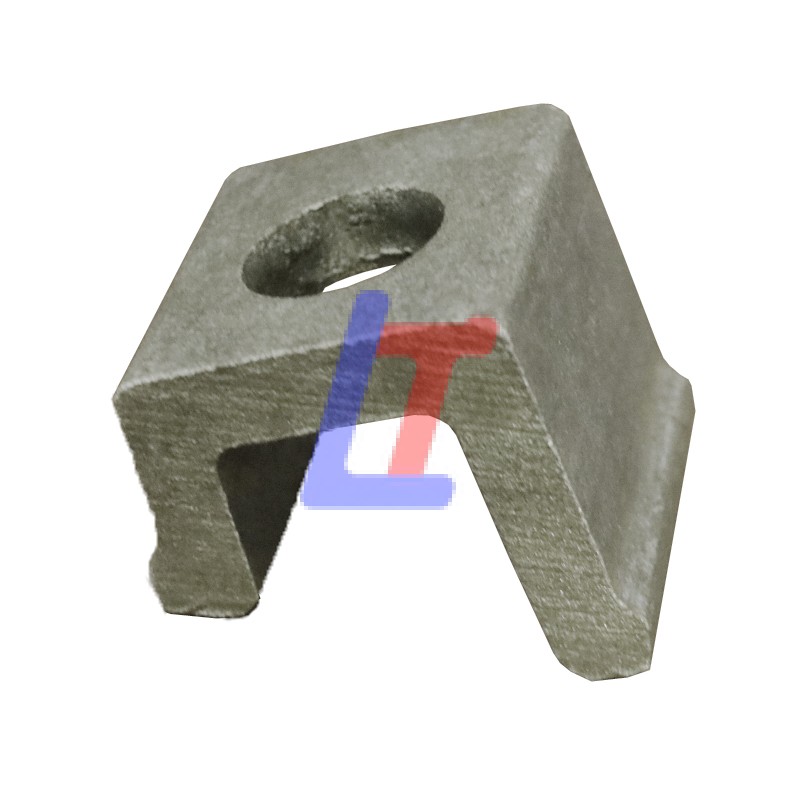

KPO Clip |
4 |
Q235, QT450-10, QT500-7 |
Standard: DIN5906 |
|

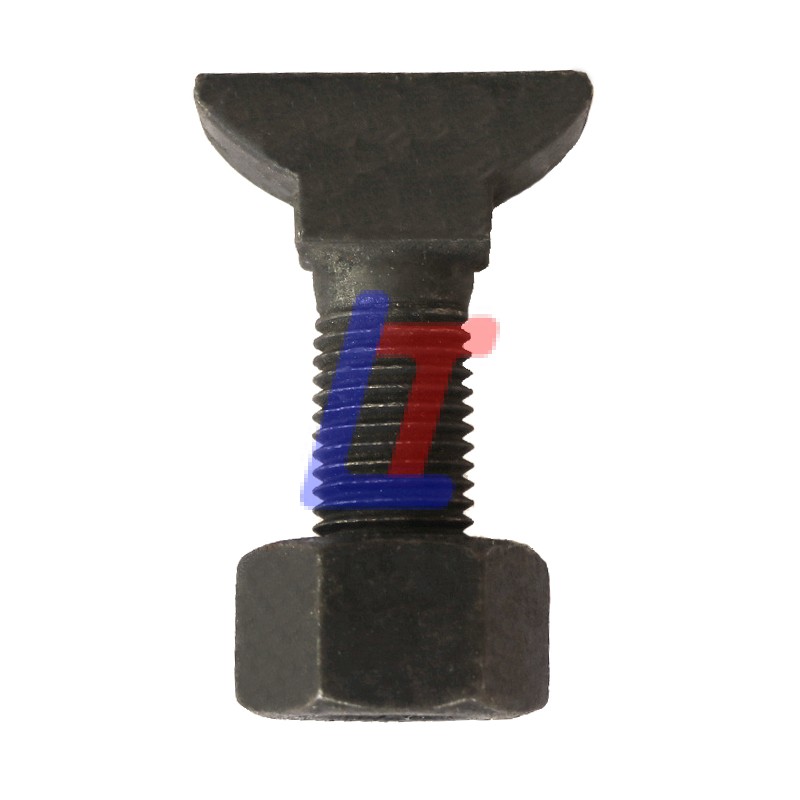

8 |
Grade4.6: Q235 Grade5.6: 35# Grade8.8: 45# |
Standard: ISO898-1, UIC864-1, NF F500-50 |
|
|

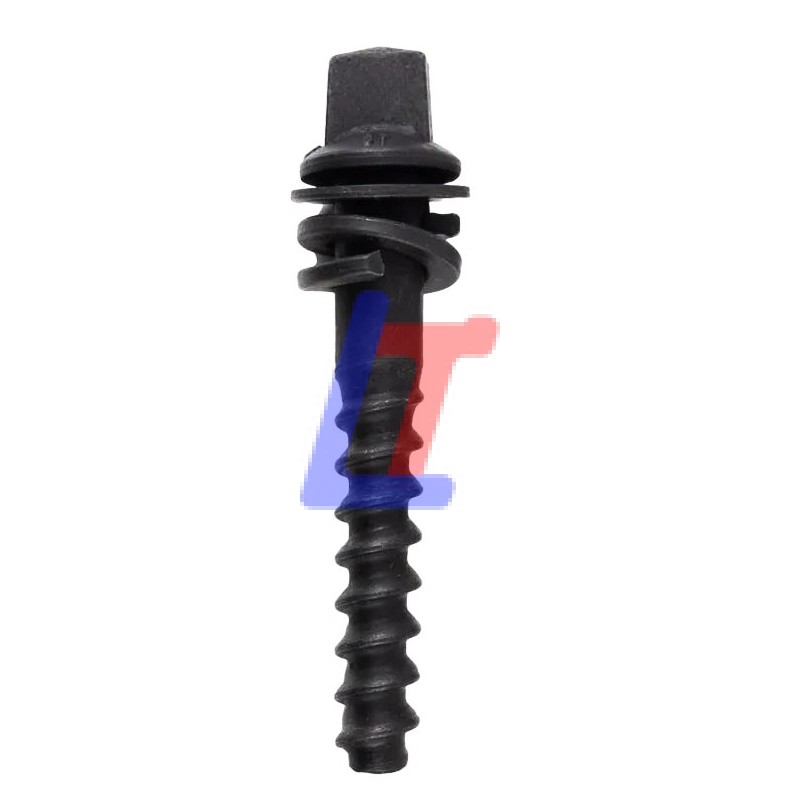

4 |
Grade4.6: Q235 Grade5.6: 35# Grade8.8: 45# |
Diameter: 22mm or 24mm. Length: 55mm, 65mm, 75mm, 90mm |
|
|
Hex Nut |
4 |
Q235 |
Standard: DIN985 |
|

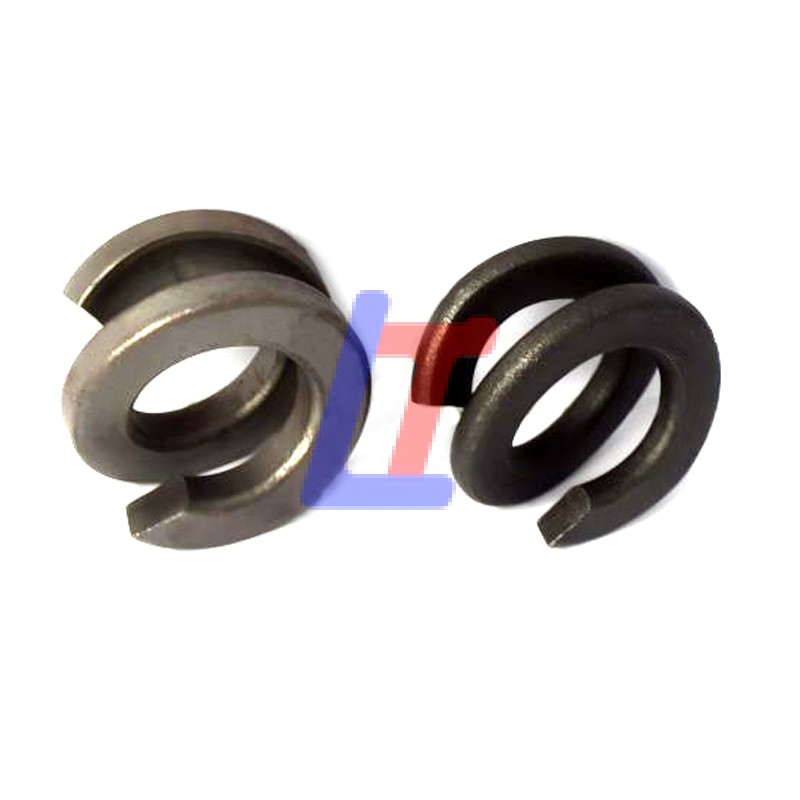

Double Spring Washer |
4 |
65Mn, 38Si7 |
Standard: UIC864-3 |
|

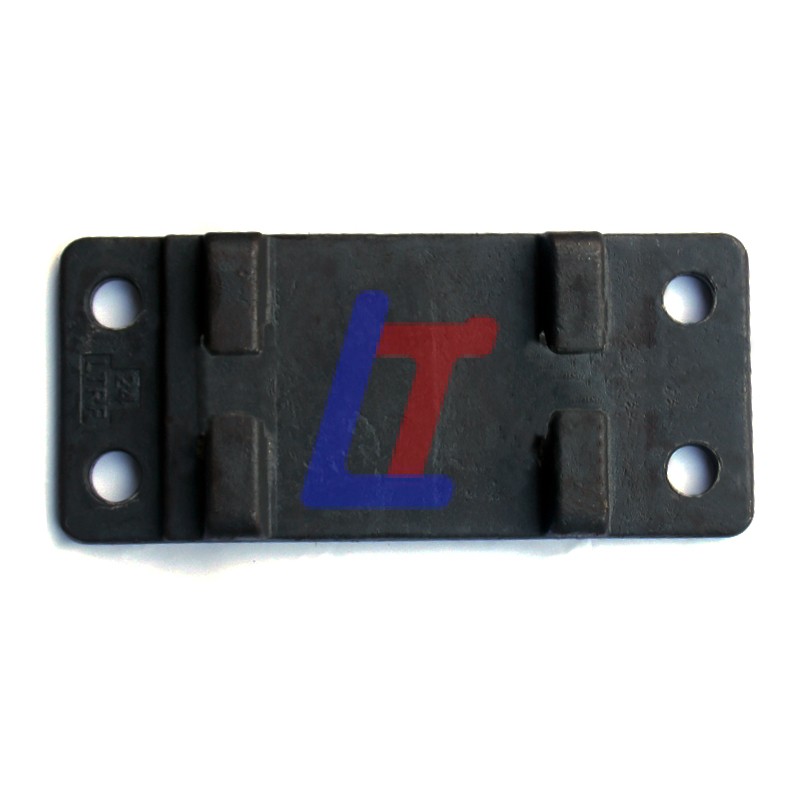

2 |
Q235, QT450-10, QT500-7 |
Standard: UIC864-6 |
|
