Descripción de Producto
1,Sistema de Fijación elástica NY – GN worldwidely Used:
Sistema de Fijación elástica NY – GN are widely used in Europe, Africa and South America. The rail fastening system is suitable for fastening 115RE rail on concrete sleepers.
2,High strength and durability:
Sistema de Fijación elástica NY – GN is designed to withstand heavy loads and frequent use, with high fatigue strength, and can maintain its structural integrity and performance stability for a long time.
3,Excellent elastic recovery ability:
Sistema de Fijación elástica NY – GN can effectively buffer the impact force generated by the passage of trains and quickly return to its original state, which helps to reduce track wear and extend service life. In addition to reducing noise and vibration, spring blade technology is essential for railway lines that run through residential areas.
4,Good insulation performance:
Made of special materials, it can effectively prevent current leakage and ensure the safe operation of electrical systems.
5,Easy installation and maintenance:
Sistema de Fijación elástica NY – GN are designed with easy installation and removal in mind, which makes daily maintenance of tracks more convenient and quick, reducing maintenance costs and time.
Sistema de Fijación elástica NY – GN plays an important role in modern railway construction and maintenance with its excellent performance characteristics.
El sistema de fijación de riel NY-GN es ampliamente utilizado en México.

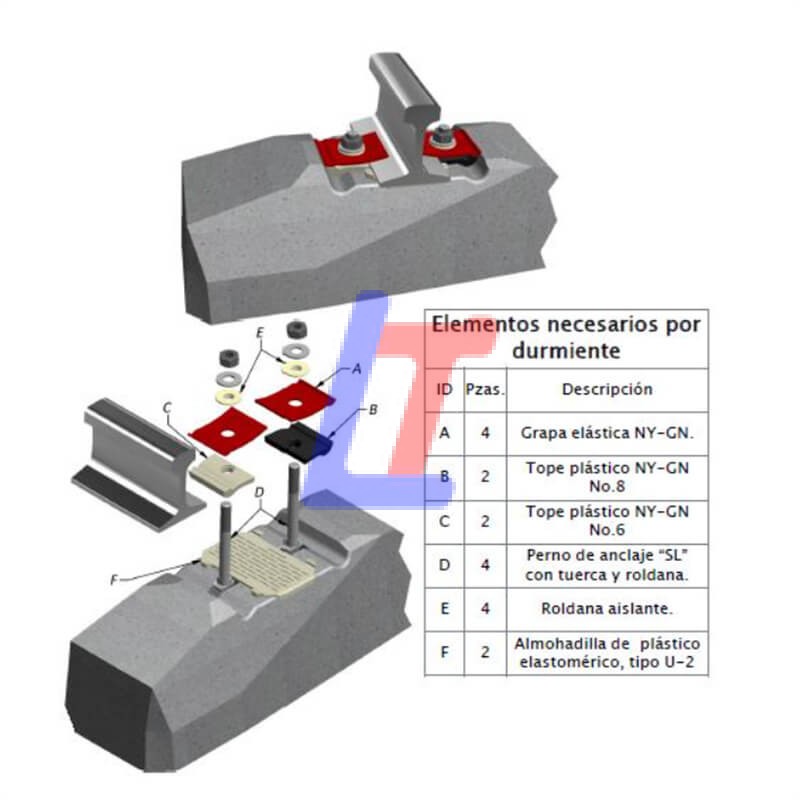

El sistema de fijación de rieles se utiliza para fijar el riel de acero y el durmiente de ferrocarril. La función del sistema de sujeción de rieles es mantener el calibrador y evitar el movimiento vertical y horizontal de los rieles en relación con la posición del durmiente. Un sistema de fijación suele consistir en una placa de amarre de raíl, un pico, una pinza, un anclaje de raíl u otros sujetadores.
Technical Specifications
|
Item |
Componente |
Photos |
Material |
Acabado |
Qty For One Sleeper |
Especificaciones |
|
A |
Grapa elástica NY-GN |
|
Acero de alta resistencia |
Pintura primaria roja Upon customer requirement |
4 |
Nylco 9.00.10.023 |
|
B |
|
Poliamida |
Natural |
2 |
Nylco 9.00.10.006 Density:1.39g/cm³ Tensile strength:165Mpa Elongation:3.5% Melting point:226℃ Insulation resistance:≥1.9×1012Ω Hardness:≥114HRR |
|
|
C |
|
Poliamida |
Natural |
2 |
||
|
D
|
|
Acero medio carbón |
Oil Black,Zinc Dacromet,HDG, Upon customer requirement |
4 |
STEDEF No. S321/0 Tensile strength:≥800Mpa Yield strength:≥640Mpa Elongation:≥12% |
|
|
Tuerca Ferrocarrilera 7/8″ 9-UNC-2A |
|
Acero medio carbón |
/ |
|||
|
Roldana plana de acero calibre 10 u 11 |
|
Acero Bajo carbón |
/ |
|||
|
E |
Roldana aislante |
|
Poliamida |
Natural |
4 |
Nylco 9.00.10.018 Density:1.15g/cm³ Tensile strength:66.3Mpa Elongation:31.3% Melting point:228℃ Insulation resistance:≥2.8×1012Ω Hardness:≥114HRR |
|
F |
Almohadilla de plástico elastomérico, tipo U-2 |
|
Plástico elastomérico |
Natural |
2 |
Nylco 9.00.10.026 Density:1.09g/cm³ Tensile strength:4.23Mpa Tensile Modulus:2.97Mpa Melting point:200-220℃ Shore hardness:≥40D |
